Guitar String Gauge Chart: Electric and Acoustic Sizes

A guitar string gauge chart helps you compare the actual diameters in a pack. It cannot tell you how every guitar will feel from the first number alone. Start with your instrument type, tuning and current set, then compare all six strings before choosing a change.

Quick Answer: “10s” means the thinnest string is normally 0.010 inch in diameter. A 10–46 electric set and a 10–52 set share that first string but have different bass strings. Electric 9–42 and 10–46 sets are useful comparison points; acoustic “light” often means 12–53. Check the exact pack and your guitar maker's guidance. After changing gauges, measure the setup before deciding whether anything needs adjustment.

The recommendation tool above offers a starting suggestion. It does not measure your guitar, identify its current strings or calculate the tension of a specific pack. Use the charts below to check its suggestion against the manufacturer's complete set specification.

On this page:

• Read string numbers and units
• Electric guitar string gauge chart
• Acoustic guitar string gauge chart
• Understand tension, scale length and tuning
• Choose your next set
• Check the guitar after changing gauges
• Frequently asked questions

How to Read Guitar String Gauges

What do 9s, 10s and 12s mean?

The numbers usually describe the first string's diameter in thousandths of an inch. Thus “9” means .009 inch, “10” means .010 inch and “12” means .012 inch. They do not describe string height above the frets, the number of strings or the tension in pounds.

A guitar's first string is the thin, high E in standard tuning. Its sixth string is the thick, low E. Manufacturers often print set sizes from first to sixth, which is the order used in our tables: high E, B, G, D, A, low E.

Read the numbers between the endpoints

A 10–46 label tells you about two strings. You still need the other four sizes and the construction. Two sets with the same endpoints can use different middle strings, and a wound third string can feel different from a plain third.

Keep a photo of the back of your current packet. If the guitar already feels comfortable, buying that exact set is a useful baseline. An unexplained replacement set makes later comparisons harder: you may have changed gauge, winding, coating and string age together.

Inches, millimetres and the missing zero

A .010-inch string is 0.254 mm in diameter, not 0.010 mm or 10 mm. The conversion uses 1 inch = 25.4 mm, the exact definition documented by NIST.

Pack shorthand	Diameter in inches	Diameter in mm
9	.009	0.2286
10	.010	0.2540
11	.011	0.2794
12	.012	0.3048
13	.013	0.3302

These are diameter conversions, not action settings. Keep string gauge and string action height in separate fields in your notes. A string can be thin in diameter while still sitting too high above the frets for comfortable playing.

Electric Guitar String Gauge Chart

String Gauge Comparison Table

These are named Ernie Ball Nickel Wound Slinky sets, checked against the manufacturer's six-string specifications. They are examples you can compare, not universal definitions of “light” or “regular.” All diameters are inches; p means plain and w means wound.

Named set	Six diameters: high E → low E
Extra Slinky 8–38	.008p · .011p · .014p · .022w · .030w · .038w
Super Slinky 9–42	.009p · .011p · .016p · .024w · .032w · .042w
Hybrid Slinky 9–46	.009p · .011p · .016p · .026w · .036w · .046w
Regular Slinky 10–46	.010p · .013p · .017p · .026w · .036w · .046w
Power Slinky 11–48	.011p · .014p · .018p · .028w · .038w · .048w
Skinny Top Heavy Bottom 10–52	.010p · .013p · .017p · .030w · .042w · .052w

Compare Super and Hybrid: their top three sizes match; the bass sizes differ. Compare Regular and Skinny Top Heavy Bottom for another example of why “10s” is incomplete. Check the manufacturer's current packet if buying another range or brand.

Should you choose 9s or 10s?

For an electric guitar in standard tuning, use your present set as the reference. If you like the rhythm feel but struggle with your usual bends, a nearby lighter option is worth trying. If notes move sharp under a heavy fretting hand, first try reducing pressure; a different set is only one possible response.

Avoid treating 10s as a graduation test. There is no skill level at which a player must move to heavier strings. Choose a set that lets you play your actual music comfortably, including quiet chords and controlled bends, rather than one that merely feels impressive for five minutes.

Plain and wound third strings

The G string deserves its own check when comparing packs. A “w” next to its diameter identifies a winding around a core; a “p” identifies a plain string. Do not substitute one for the other solely because the printed diameter seems close.

A change of third-string construction can alter its feel and the intonation adjustment it needs. If the guitar's G suddenly feels very different while the other strings seem familiar, inspect the packet before assuming something is wrong with the neck.

For specific options, use our Stratocaster string comparison or Telecaster string comparison. These keep model and hardware choices separate from the basic sizing chart.

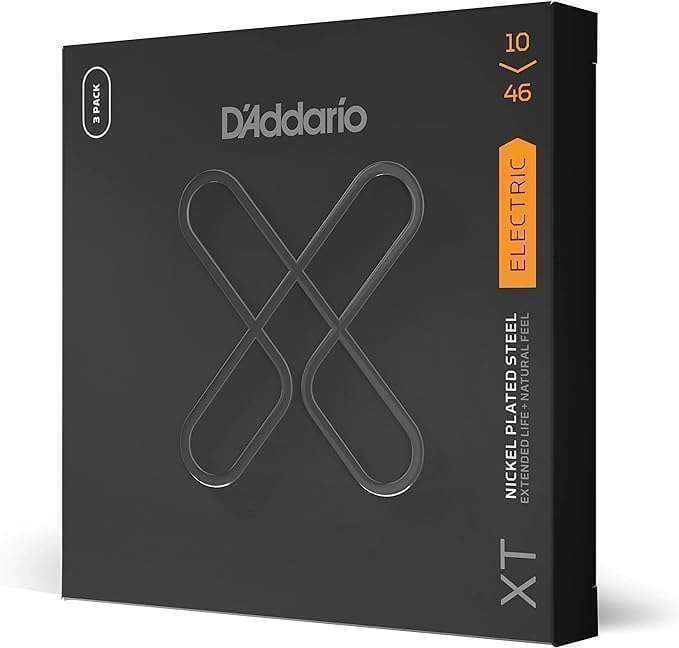

The three electric options below are alternatives, not a shopping list. Confirm the gauge and pack quantity at Amazon; a single set and a multipack are not comparable by headline price alone.

Acoustic Guitar String Gauge Chart

Six-string steel-string examples

These D'Addario Phosphor Bronze sets show why acoustic labels need their own chart. The sizes come from the maker's EJ26 11–52, EJ16 12–53 and EJ17 13–56 specifications. Diameters are inches, ordered high E to low E.

Named set	Six diameters: high E → low E
EJ26 Custom Light	.011p · .015p · .022w · .032w · .042w · .052w
EJ16 Light	.012p · .016p · .024w · .032w · .042w · .053w
EJ17 Medium	.013p · .017p · .026w · .035w · .045w · .056w

The word “light” on an acoustic packet is not equivalent to “light” on an electric packet. Nor does every maker use the same sizes under that label. Compare the numerical specification before changing brands.

Start with the instrument's approved range

Find the string recommendation for your exact acoustic model, then consider a nearby alternative within its guidance. A factory-installed set gives you a useful reference; it is not evidence that every acoustic of a similar body shape should use it.

Taylor's service guidance distinguishes going lighter from increasing gauge and recommends checking the setup when a guitar feels difficult. Its limits are Taylor guidance, not permission to install mediums on every vintage, repaired or unfamiliar acoustic.

If a used guitar's history or condition is uncertain, get that checked before increasing the load. A string pack cannot resolve a lifting bridge, damaged neck or other structural problem. Keeping the instrument playable comes before chasing a particular gauge label.

Keep nylon and twelve-string instruments separate

These charts describe six-string steel-string sets. Do not install them on a classical guitar intended for nylon strings. Buy the appropriate string type for that instrument and follow its manufacturer's guidance.

A twelve-string needs its own matched courses and specifications. Do not double a six-string table or assume the first number describes every string in a course. The separate acoustic gauge guide gives more context for acoustic choices.

For a controlled comparison, keep the winding material consistent while changing gauge. If you switch from an old uncoated set to a fresh coated set of another material and size, your impressions describe the whole change; they cannot identify gauge as the cause.

These three catalog options are 12–53 acoustic alternatives with different materials or coating. They are not the three gauge rows above. Check the exact pack details on Amazon before ordering.

String Tension, Scale Length and Tuning

Gauge is a diameter measurement. Tension also depends on the string's mass per unit length, vibrating length and pitch. D'Addario's string-tension explanation documents those inputs; diameter alone cannot supply the unit weight of a wound string.

What changes on a shorter scale?

For the same string at the same pitch, a shorter vibrating length means lower tension. That does not make every short-scale guitar easier to play: action, frets, neck shape and string construction also affect the experience.

Do not copy another player's gauge purely because both guitars have six strings. Record the actual model and scale alongside the set. A useful comparison holds the other factors as steady as possible.

Drop D is different from D standard

In Drop D, only the low E is lowered to D. In D standard, all six strings move down a whole tone. Those are different changes, so a universal “use this gauge for D” recommendation leaves out essential information.

For an unchanged string and scale, lowering pitch reduces tension. Whether a heavier bass string improves your playing depends on your attack, desired resistance and the guitar's hardware. Check a maker's tension data for the actual construction when comparing unfamiliar sets or substantial tuning changes.

Heavier is not a tone guarantee

Treat tone claims as something to test on your guitar and amp. “Maximum sustain,” “better tone” and “professional gauge” do not describe a measurable outcome for every instrument. Gauge is one choice among string material, construction, pickup settings, technique and amplification.

Record a short example with unchanged amp settings and your normal playing volume. Listen for whether the new set helps the part you play. Do not keep an uncomfortable set solely because a packet or famous player's preference suggests that it should sound better.

Choose Your Next Set With a Simple Comparison

Write down the problem you want to solve

Choose one sentence: “My usual bend takes too much effort,” “The low string feels loose in my alternate tuning,” or “I want to replace a comfortable worn-out set.” These lead to more useful decisions than choosing a gauge from a genre label.

For a straightforward replacement, keep the exact model and sizes. For an experiment, change one variable where practical. You do not need to buy six packs to learn something; one carefully selected alternative and a clear record are enough to begin.

Check fit before buying

Confirm the guitar type, string count, scale, tuning and appropriate string end. Check any model-specific restrictions. A set can have familiar diameters but still be the wrong product for a particular instrument.

If you are considering a large diameter increase, ask a technician about nut-slot fit first. A thicker string that binds is not fixed by forcing it into place. Permanent slot work deserves a deliberate decision because returning to a much thinner set may then reveal a different problem.

Make the playing comparison repeatable

Use the same pick, tuning and familiar passage. Include open chords, fretted chords, a bend you normally play and a short rhythm part. Listen through the normal amplified sound as well as checking obvious mechanical problems.

Write down what improved and what became harder. A slightly lighter set may help one task while changing how another responds to your hand. Your goal is a useful overall compromise, not winning every category in a generic chart.

Record	Current set	Trial set
Manufacturer, range and all six gauges	Fill in	Fill in
Tuning and date installed	Fill in	Fill in
Plain or wound third	Fill in	Fill in
Relief method and reading	Fill in	Fill in
Action fret, strings and readings	Fill in	Fill in
Bridge position, if it floats	Fill in	Fill in
Playing result and remaining problem	Fill in	Fill in

What to Check After Changing String Gauge

Changing strings is a reason to check, not an instruction to turn every adjustment. Tune to your intended pitch and verify the strings are installed and seated correctly before diagnosing the setup.

Floating bridge position

Compare the bridge with its previous position at pitch. A floating Strat bridge balances string pull against springs; Fender's Stratocaster setup procedure describes that balance and the need to retune during adjustment. Follow the procedure for your actual bridge rather than applying Strat instructions to all vibratos.

Relief and action

Measure relief using the same fretting or capo method as before. Then check action at the same fret and tuning as your baseline. Only consider a truss-rod correction if the relief measurement and the instrument's instructions support it.

There is no universal instruction to tighten the rod after every heavier set or wait exactly 24 hours after every change. Recheck once tuning is stable and follow the maker's procedure. If readings keep changing or the adjustment resists, stop and get the cause assessed.

Nut behavior and tuning

Listen and feel for sticking during tuning, and compare open-string behavior with fretted notes. A ping or a string sitting awkwardly in a slot is useful evidence for a technician. It is not a reason to file the nut by eye.

Intonation and the final playing check

After the relevant setup checks, compare the tuned open string with its normally fretted octave using a tuner. Press as you do when playing; excessive pressure can sharpen the note. Adjustable electric saddles and compensated acoustic saddles require different approaches if the comparison remains wrong.

Keep the new measurements with the packet details. If the guitar plays well and the checks are satisfactory, you may not need any adjustment at all. That is a successful string change, not an unfinished setup.

Guitar String Gauge FAQs

What do guitar string gauge numbers mean?

They normally express diameter in thousandths of an inch. A .010-inch first string is called a 10. A 10–46 pack describes the first and sixth strings; check the four middle sizes and construction too.

What is a standard electric guitar string gauge?

There is no universal set. 9–42 and 10–46 are useful comparison points for standard tuning, but your instrument's specification and current comfortable set are better starting references than the word “standard.”

Are acoustic and electric light strings the same size?

No. Labels vary by maker and range. The acoustic EJ16 Light example here is 12–53; the electric Super Slinky example is 9–42. Compare the full numerical set and intended instrument type.

Are 9s easier to bend than 10s?

When comparing similar strings on the same guitar at the same pitch, a lighter plain string generally offers less resistance. Overall comfort also depends on the setup and your technique. Try a nearby alternative rather than judging every set from its first number.

What is the difference between 10–46 and 10–52?

In the two Ernie Ball examples here, the .010, .013 and .017 plain strings match. The wound strings differ. Read all six sizes: the larger final number does not mean every string in the pack is heavier.

What does a wound G string mean?

It has a wrap around a core, identified here with “w.” A plain G has no wrap and is labelled “p.” Changing construction can change feel and intonation requirements even when two printed diameters look similar.

Do I need a truss-rod adjustment after changing gauge?

Not automatically. Tune the guitar and measure relief using its specified method. Adjust only if the measurement and playing symptoms justify it. Bridge balance, nut fit and string installation are separate checks.

Can I put steel acoustic strings on a classical guitar?

Do not substitute a steel-string set on a guitar intended for nylon strings. Use the correct string type and the instrument maker's guidance. These six-string steel-string charts are not classical-guitar specifications.

How do I find my current string gauge?

Check the packet, purchase record or fitting record first. Factory specifications tell you what shipped originally, not necessarily what a previous owner installed. If the set is unknown, a technician can help identify it before you choose a replacement.

Do heavier guitar strings always sound better?

No. Better is a playing and listening preference, and gauge alone does not determine tone or sustain. Compare sets on the same guitar with consistent settings, and judge comfort alongside the sound you need.
