Fender Precision Bass Pickup Height - Complete Setup Guide

Pickup height is one of the most critical yet often overlooked aspects of Precision Bass setup. The P-Bass's iconic split-coil pickup requires precise positioning to achieve that legendary tone - powerful fundamentals, focused midrange, and exceptional note clarity. Whether you're chasing vintage Motown thump or modern rock punch, proper pickup height adjustment unlocks your Precision Bass's full tonal potential.

This comprehensive guide covers everything from Fender's factory specifications to genre-specific settings, helping you dial in the perfect tone for your playing style.

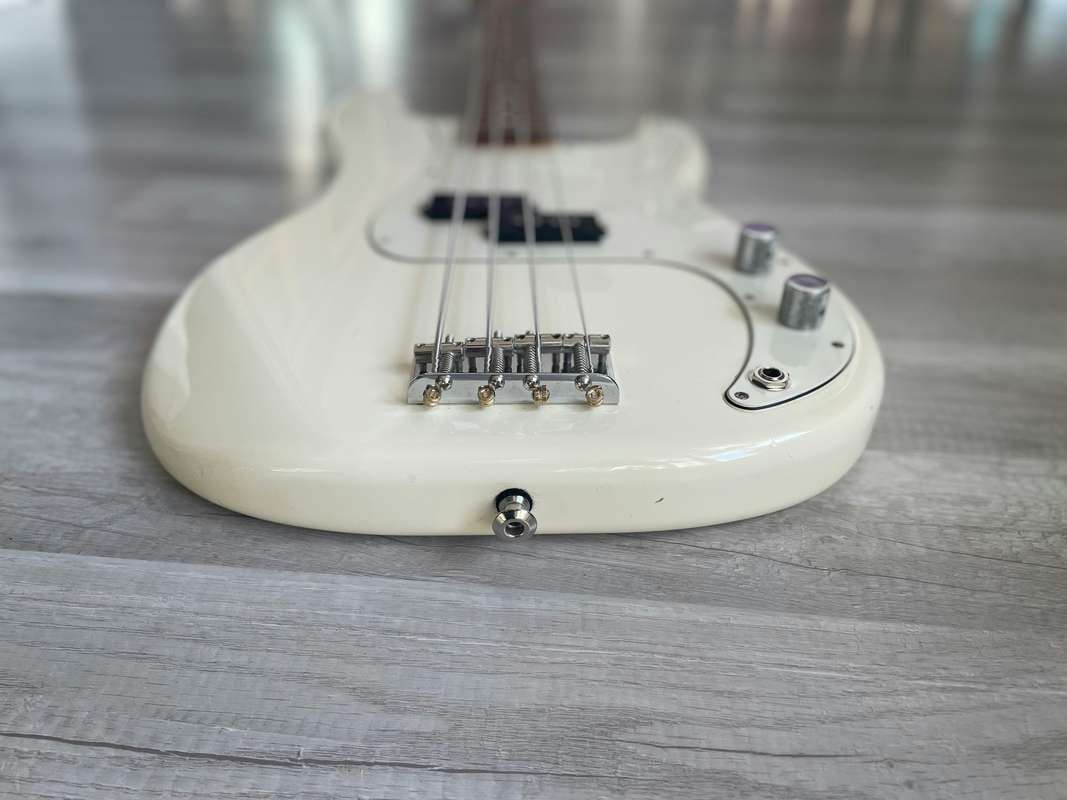

Photo by Nicolas Lochon on Unsplash

Quick Answer: Fender P Bass Pickup Height Specifications

Standard Fender Precision Bass pickup height specifications (measured from top of pickup pole piece to bottom of string, with string pressed at last fret):

Quick Reference:

• Bass side (E-A strings): 3.2mm (8/64")
• Treble side (D-G strings): 2.4mm (6/64")
• Start with these specs, then adjust by ear
• Small changes (0.5mm) make significant tonal differences

For detailed measurement and adjustment procedures, see the step-by-step guide below.

Part 1: Understanding the P Bass Pickup Design

The Precision Bass revolutionized music in 1951 with its split-coil pickup design. Understanding how this pickup works is essential for optimal height adjustment.

The Split-Coil Configuration

Unlike single-coil pickups found on guitars, the P-Bass uses a unique split-coil design:

• Two offset coil sections: One covers E and A strings, the other covers D and G strings
• Hum-cancelling operation: The opposing magnetic fields cancel external noise while preserving tone
• Asymmetric positioning: Angled placement balances output across all four strings
• Individual pole pieces: Eight adjustable pole pieces (two per string) for precise height control

How Pickup Height Affects Tone

Pickup height directly influences three critical aspects of your P-Bass tone:

1. Output Level

• Higher pickup = More magnetic field interaction = Stronger signal
• Lower pickup = Less field interaction = Weaker signal
• Sweet spot provides optimal signal-to-noise ratio

2. Tonal Character

• Too close: Harsh treble, compressed dynamics, loss of sustain
• Too far: Weak fundamentals, muddy low end, poor note definition
• Optimal: Balanced response across frequency spectrum

3. String-to-String Balance

• Uneven heights: Some strings louder than others
• Proper balance: Equal perceived volume across all four strings
• Critical for: Fingerstyle playing, slapping, recording

Magnetic Pull and Sustain

One often-overlooked consequence of pickup height:

Magnetic Pull Effect:

• Pickups too close create strong magnetic field
• Field can physically pull on vibrating strings
• Results in: Reduced sustain, intonation issues, "warbling" tones
• Most noticeable on: E and A strings (thicker, more mass)

Optimal Distance:

• Close enough for strong signal
• Far enough to avoid magnetic interference
• Test by playing sustained notes and listening for pitch fluctuation

Part 2: Tools and Preparation

Essential Tools for P Bass Pickup Height Adjustment

Required Tools:

• Precision ruler or digital caliper: For accurate measurements
• Small Phillips screwdriver: For pickup height adjustment screws
• Bass tuner: Ensure strings are at pitch during adjustment
• Amplifier: Test tone changes in real-time

Optional but Helpful:

• String height gauge: Dedicated bass setup tool
• Feeler gauges: Alternative measurement method
• Notebook: Record your settings for reference

Pre-Adjustment Preparation

Before adjusting pickup height, ensure your bass is properly set up:

1. Install Fresh Strings

   • New strings provide consistent reference point
   • Recommended: Standard .045-.105 gauge roundwounds
   • Allow 24 hours for strings to settle
   • See our Best Strings for Precision Bass Guide for string recommendations

2. Set Proper String Action

   • Pickup height measurements assume correct action
   • Standard P-Bass action: 2.4-3.2mm at 12th fret
   • Adjust bridge saddles before pickup height

3. Check Neck Relief

   • Proper relief: 0.010-0.014" at 8th fret
   • Too much relief affects pickup-to-string distance
   • See our Complete P-Bass Setup Guide

4. Tune to Pitch

   • All measurements taken with strings at correct tension
   • Use chromatic tuner for accuracy
   • Standard tuning: E-A-D-G

Part 3: Step-by-Step Pickup Height Adjustment

Measuring Current Height

Measurement Process:

1. Press String at Last Fret

   • Hold string down firmly at highest fret (usually 20th-22nd fret)
   • This positions string closest to pickup
   • Simulates highest string position during playing

2. Locate Measurement Point

   • Measure from top of pole piece to bottom of string
   • Not from pickup cover - must be pole piece itself
   • Measure directly over center of pole piece

3. Measure Each Side

   • Bass side: E and A strings (measure both, use average)
   • Treble side: D and G strings (measure both, use average)
   • Record all measurements for reference

4. Check Factory Baseline

   • Compare your measurements to Fender specs
   • Bass side target: 3.2mm (8/64")
   • Treble side target: 2.4mm (6/64")

Making Adjustments

Adjustment Procedure:

1. Locate Adjustment Screws

   • P-Bass pickups have two height adjustment screws
   • Located at each end of pickup (bass and treble sides)
   • Usually Phillips head screws
   • Turn clockwise to lower, counter-clockwise to raise

2. Start with Bass Side (E-A Strings)

   • This side typically needs to be higher
   • Provides foundation for overall tone
   • Adjust screw in small increments (1/4 turn)
   • Measure after each adjustment

3. Adjust Treble Side (D-G Strings)

   • Should be slightly lower than bass side
   • Prevents treble strings from overpowering
   • Maintain balance with bass side
   • Test string-to-string volume balance

4. Make Micro-Adjustments

   • Once close to spec, make tiny adjustments
   • 1/8 turn = approximately 0.2-0.3mm height change
   • Test tone after each small change
   • Trust your ears over measurements

Testing Your Settings

Playability Tests:

1. String Balance Test

   • Play each string individually at same velocity
   • Listen for even perceived volume
   • Adjust if one side dominates

2. Dynamics Test

   • Play soft, medium, and hard
   • Pickup should respond to all dynamics
   • Too close = compressed, limited dynamics

3. Sustain Test

   • Play open strings, let ring
   • Listen for any "warbling" or pitch fluctuation
   • Lower pickup if you hear magnetic pull

4. Genre-Specific Test

   • Play your typical bass lines
   • Test with your amp settings
   • Make final adjustments for your sound

Part 4: Optimal Pickup Height by Playing Style

For Fingerstyle Players

Recommended Heights:

• Bass side: 3.2mm (8/64") - Standard Fender spec
• Treble side: 2.4mm (6/64") - Standard Fender spec
• Goal: Balanced, warm tone with strong fundamentals

Why These Settings:

• Fingerstyle emphasizes fundamental frequencies
• Standard height provides optimal warmth
• Balanced output across all strings
• Good for: Motown, soul, R&B, traditional rock

Fine-Tuning:

• Slightly higher (3.5mm bass / 2.7mm treble) for more output
• Slightly lower (2.9mm bass / 2.1mm treble) for more clarity

For Pick Players

Recommended Heights:

• Bass side: 3.5mm (9/64") - Slightly higher than standard
• Treble side: 2.7mm (7/64") - Slightly higher than standard
• Goal: Strong attack, defined note separation

Why These Settings:

• Pick playing requires stronger signal
• Higher output handles aggressive attack
• Maintains clarity with hard picking
• Good for: Punk, rock, metal, hard rock

Fine-Tuning:

• Maximum output: 4.0mm bass / 3.2mm treble
• Watch for magnetic pull at these heights

For Slap Bass Players

Recommended Heights:

• Bass side: 2.7mm (7/64") - Lower than standard
• Treble side: 2.1mm (5/64") - Lower than standard
• Goal: Maximum clarity, fast transient response

Why These Settings:

• Slap technique creates lots of string movement
• Lower pickup prevents string contact
• Enhances percussive attack
• Reduces likelihood of "dead spots"

Fine-Tuning:

• Test by slapping hard - strings shouldn't hit pickup
• If too weak, raise in 0.2mm increments
• Balance clarity with adequate output

For Studio/Recording

Recommended Heights:

• Bass side: 3.0mm (8/64") - Slightly lower than standard
• Treble side: 2.2mm (6/64") - Slightly lower than standard
• Goal: Clean signal, wide dynamic range

Why These Settings:

• Recording captures more detail
• Lower pickup = more dynamics
• Better for compression and processing
• Cleaner DI signal

Fine-Tuning:

• Test with your recording chain
• Adjust based on preamp gain needs
• Consider different heights for different songs

Part 5: Common Pickup Height Problems and Solutions

Problem 1: Weak Output / Lack of Volume

Symptoms:

• Bass sounds quiet compared to other instruments
• Difficulty cutting through mix
• Need excessive amp gain to be heard

Causes:

• Pickup too far from strings
• Weak or dying pickup
• String action too high

Solutions:

1. Raise pickup in 0.5mm increments on both sides
2. Test output level after each adjustment
3. Maximum safe height: 4.0mm bass / 3.2mm treble
4. If still weak at maximum height, check pickup electronics

Problem 2: Harsh, Brittle Tone

Symptoms:

• Treble strings sound harsh or "zingy"
• Loss of warmth in overall tone
• Uncomfortable brightness

Causes:

• Treble side too close to strings
• Unbalanced pickup height (treble too high)
• New strings combined with high pickup

Solutions:

1. Lower treble side by 0.5mm
2. Maintain at least 0.5mm difference between bass and treble sides
3. Allow new strings to settle (48 hours playing time)
4. Re-test with your typical amp EQ settings

Problem 3: Uneven String Volume

Symptoms:

• E or A string much louder than D or G
• Or vice versa
• Difficult to balance in mix

Causes:

• Uneven pickup height adjustment
• Individual pole pieces need adjustment
• String gauge mismatch with setup

Solutions:

1. Measure both sides carefully
2. Ensure bass side is 0.8mm higher than treble side
3. If problem persists, check individual pole pieces
4. Some P-Bass pickups allow pole piece height adjustment

Problem 4: "Warbling" or "Wolf Tones"

Symptoms:

• Pitch fluctuation on sustained notes
• Notes sound "wavy" or unstable
• Most noticeable on E and A strings

Causes:

• Magnetic pull - pickup too close to strings
• Strong magnetic field interfering with string vibration
• Particularly common with flatwound strings (more mass)

Solutions:

1. Lower pickup on affected side by 1.0mm
2. Test sustained notes after adjustment
3. If problem persists, lower further
4. Minimum safe height: 2.0mm (any lower loses too much output)

Problem 5: Loss of Sustain

Symptoms:

• Notes die out quickly
• Difficult to play long, sustained bass lines
• Particularly noticeable on open strings

Causes:

• Magnetic pull dampening string vibration
• Pickup too close (similar to "warbling")
• Can also be caused by poor neck relief or setup

Solutions:

1. Lower pickup height by 0.5-1.0mm
2. Test sustain on all strings
3. Ensure proper neck relief (0.010-0.014")
4. Check that bridge saddles are seated properly

Problem 6: Muddy or Undefined Tone

Symptoms:

• Notes lack clarity and definition
• Bass sounds "boomy" or unfocused
• Difficulty hearing individual notes in fast passages

Causes:

• Pickup too far from strings
• Excessive bass side height
• Old, dead strings

Solutions:

1. Raise pickup closer to strings
2. Start with Fender specs as baseline
3. Replace strings if more than 3 months old
4. Check amp EQ - may need mid-range boost

Part 6: Pickup Height and String Gauge Relationship

Different string gauges require different pickup height adjustments.

Light Gauge Strings (.040-.095)

Characteristics:

• Less mass = less magnetic interaction needed
• Easier to get magnetic pull
• More prone to "warbling" tones

Recommended Adjustment:

• Start 0.5mm lower than Fender standard
• Bass side: 2.7mm
• Treble side: 1.9mm
• Monitor for adequate output

Standard Gauge (.045-.105)

Characteristics:

• Most common P-Bass string gauge
• Balanced tension and tone
• Fender specs designed for this gauge

Recommended Adjustment:

• Use Fender standard specs
• Bass side: 3.2mm
• Treble side: 2.4mm
• Sweet spot for most players

Heavy Gauge (.050-.110 or heavier)

Characteristics:

• More mass = requires closer pickup
• Less prone to magnetic pull
• Fuller, deeper tone

Recommended Adjustment:

• Start 0.5mm higher than Fender standard
• Bass side: 3.7mm
• Treble side: 2.9mm
• May need more output for similar perceived volume

Flatwound Strings

Special Considerations:

• Flatwounds have more mass than roundwounds
• Much more susceptible to magnetic pull
• Require careful height adjustment

Recommended Adjustment:

• Start 1.0mm lower than roundwound specs
• Bass side: 2.2mm
• Treble side: 1.4mm
• Gradually raise if output is insufficient
• Monitor carefully for magnetic pull

Part 7: Advanced Pickup Height Tips

Matching Pickup Height to Your Amplifier

Your amp's input sensitivity affects optimal pickup height:

High-Gain Amps / Active Preamps:

• Can use slightly lower pickup height
• Prevents input overload/distortion
• Maintains cleaner headroom
• Recommended: 0.5mm below standard

Low-Gain Amps / Passive Systems:

• May need slightly higher pickup
• Compensates for lower amp sensitivity
• Prevents need for excessive amp gain
• Recommended: 0.5mm above standard

Pickup Height for Different P-Bass Models

American Professional / Ultra Series:

• Uses updated pickup design
• Slightly hotter output than vintage
• Recommended: Standard specs or 0.2mm lower

Player Series / Mexican Made:

• Standard ceramic pickups
• Use Fender standard specifications
• Excellent starting point

Vintage Models (Pre-1984):

• Original Alnico pickups
• Often require slightly higher settings
• Recommended: 0.5mm above current standard
• Preserves vintage warmth

Squier Precision Bass:

• Ceramic pickups similar to Player Series
• Use standard Fender specifications
• Budget-friendly, consistent results

Setting Pickup Height for Recording vs. Live

Studio/Recording Setup:

• Slightly lower height (2.7mm / 2.0mm)
• Provides more dynamic range
• Better for compression and processing
• Cleaner DI signal

Live Performance Setup:

• Slightly higher height (3.5mm / 2.7mm)
• More output to cut through mix
• Handles stage volume better
• Less susceptible to string strikes

Versatile Middle Ground:

• Standard Fender specs work for both
• Adjust via amp preamp gain instead
• Switch between settings for different gigs
• Record your settings for consistency

Seasonal Adjustments

Temperature and humidity affect wood, which can impact pickup-to-string distance:

Summer (High Humidity):

• Neck may bow forward slightly
• Action increases
• Pickup-to-string distance increases
• May need to raise pickup 0.2-0.5mm

Winter (Low Humidity):

• Neck may straighten or back-bow
• Action decreases
• Pickup-to-string distance decreases
• May need to lower pickup 0.2-0.5mm

Best Practice:

• Check and adjust pickup height seasonally
• Keep notes on your seasonal s

ettings

• Use humidifier/dehumidifier for stable environment

Part 8: Maintenance and Ongoing Adjustment

When to Check Pickup Height

Regular Intervals:

• After string changes (different gauge or brand)
• Seasonal climate changes (every 6 months)
• After major setup work (neck adjustment, bridge work)
• When tone changes noticeably

Signs Pickup Height Needs Adjustment:

• Sudden volume change
• Loss of tone clarity
• Uneven string balance appears
• New "dead spots" emerge

Documenting Your Settings

Keep a Setup Log:

Date: [DATE]
String Gauge: .045-.105 Roundwound
Bass Side Height: 3.2mm
Treble Side Height: 2.4mm
Notes: Standard Fender spec, balanced tone
Application: Fingerstyle rock/soul

Why Document:

• Easy to return to proven settings
• Track what works for different situations
• Compare changes over time
• Share with techs or bandmates

Pickup Height During Full Setup

Correct Setup Order:

1. Truss Rod - Set neck relief first
2. String Height (Action) - Adjust bridge saddles
3. Pickup Height - Set after action is correct ⬅ YOU ARE HERE
4. Intonation - Fine-tune after pickup height set

Why This Order Matters:

• Each adjustment affects the next
• Pickup height measurements assume correct action
• Changing action after pickup height requires re-measurement
• Save time by doing in correct sequence

Conclusion

Precision Bass pickup height adjustment is a fundamental skill that dramatically impacts your tone. While Fender's standard specifications (3.2mm bass side, 2.4mm treble side) provide an excellent starting point, the optimal height for your P-Bass depends on your playing style, string gauge, and tonal preferences.

Key takeaways:

• Always measure with strings pressed at last fret
• Start with Fender specs, then adjust by ear
• Small changes (0.2-0.5mm) make significant tonal differences
• Balance output level with dynamic range
• Watch for magnetic pull on heavier strings
• Document your settings for future reference

With proper pickup height adjustment and the right tools, you'll unlock the full potential of your Precision Bass's legendary tone. Experiment, trust your ears, and enjoy the process of dialing in your perfect sound.

For more P-Bass setup information, check our Complete Precision Bass Setup Guide covering neck relief, string height, and intonation.

Frequently Asked Questions (FAQ)

1. What is the standard Fender Precision Bass pickup height?

Answer: The standard Fender Precision Bass pickup height is 8/64" (3.2mm) on the bass side (E-A strings) and 6/64" (2.4mm) on the treble side (D-G strings), measured from the top of the pole piece to the bottom of the string with the string pressed at the last fret. These specifications provide balanced output and the classic P-Bass tone.

2. How do I know if my P Bass pickup is too high?

Answer: Signs your pickup is too high include: harsh, compressed tone with limited dynamics; notes that "warble" or fluctuate in pitch; reduced sustain on open strings; or strings physically hitting the pickup when played hard. If you experience these issues, lower your pickup in 0.5mm increments until they resolve.

3. Can pickup height affect intonation on a P Bass?

Answer: Yes, pickup height can affect intonation indirectly. When pickups are too close to the strings, the strong magnetic field can pull on the strings, causing pitch fluctuation and making it difficult to intonate properly. This is called "magnetic pull" and is most noticeable on the E and A strings. Lower the pickup to eliminate this issue.

4. Should both sides of the P Bass pickup be at the same height?

Answer: No, the bass side (E-A strings) should be higher than the treble side (D-G strings). Fender specifies 3.2mm for the bass side and 2.4mm for the treble side - a difference of 0.8mm. This compensates for the fact that thicker strings need more magnetic interaction to produce equivalent output.

5. How does pickup height affect P Bass tone?

Answer: Pickup height affects three main tonal characteristics: output level (closer = louder), tonal balance (closer = more treble and attack, farther = more warmth), and dynamics (closer = compressed, farther = more dynamic range). Small adjustments of 0.2-0.5mm can significantly change your tone.

6. What's the best pickup height for slap bass on a P Bass?

Answer: For slap bass, use slightly lower pickup heights than standard: 2.7mm (7/64") on the bass side and 2.1mm (5/64") on the treble side. This provides the clarity and fast transient response needed for slapping while preventing string contact with the pickup during aggressive playing.

7. How often should I check my P Bass pickup height?

Answer: Check pickup height after every string gauge change, seasonal climate changes (humidity affects neck geometry), major setup work, or whenever you notice tonal changes. For most players, checking every 6 months during regular maintenance is sufficient, with additional checks when switching between string types or gauges.

8. Do different string gauges require different pickup heights?

Answer: Yes, string gauge affects optimal pickup height. Light gauges (.040-.095) should be 0.5mm lower than standard to avoid magnetic pull. Standard gauges (.045-.105) use Fender specs. Heavy gauges (.050-.110) should be 0.5mm higher for adequate output. Flatwound strings, having more mass, should be 1.0mm lower than equivalent roundwound gauges.

9. Can I adjust individual pole pieces on a P Bass pickup?

Answer: Most P-Bass pickups have non-adjustable pole pieces that are set at the factory. However, some aftermarket pickups feature individually adjustable pole pieces. If your P-Bass has adjustable poles, you can fine-tune string-to-string balance beyond just the overall pickup height adjustment.

10. What tools do I need to adjust P Bass pickup height?

Answer: Essential tools include a precision ruler or digital caliper for measurements, a small Phillips screwdriver for the height adjustment screws, a bass tuner to ensure strings are at pitch, and an amplifier to test tone changes. A string height gauge is helpful but not required. Most adjustments can be made with basic tools found in any bass player's toolkit.

Photo by Enrique Cadena on Unsplash

Related Posts

Precision Bass Setup Guides

• Ultimate Precision Bass Setup Guide - Complete P-Bass setup process
• Best Strings for Precision Bass - Complete string buying guide
• Precision Bass Hub - All Precision Bass resources

Other Bass Setup Guides

• Guitar Action Height Guide - Understanding action adjustment (applies to bass too)
• Guitar Truss Rod Adjustment Guide - Neck relief fundamentals

Other Fender Guitar Guides

• Stratocaster Pickup Height Guide - Compare guitar vs bass pickup adjustment
• Telecaster Setup Guide - Complete guitar setup process
• Jazzmaster Setup Guide - Offset guitar setup techniques

Tags

• Bass Setup
• Fender
• Precision Bass
