Squier Telecaster Setup: Bridge, Action & Intonation

Squier Telecaster Setup: Bridge, Action & Pickup Guide

A careful Squier Telecaster setup turns a stiff, buzzy budget guitar into one that frets easily, stays in tune and plays in tune up the neck. The order matters: identify the hardware on your actual guitar first, then set relief, then action, then pickup height, and only then intonation. Skipping ahead is the quickest way to chase your tail.

This walkthrough covers full-size Squier Teles from the Sonic, Affinity and Classic Vibe families. Those names do not tell you which bridge or pickups are fitted, so the first job is a hardware check, not a screwdriver. Use the playing-height examples below as starting points, then adjust for your touch, strings and fret condition.

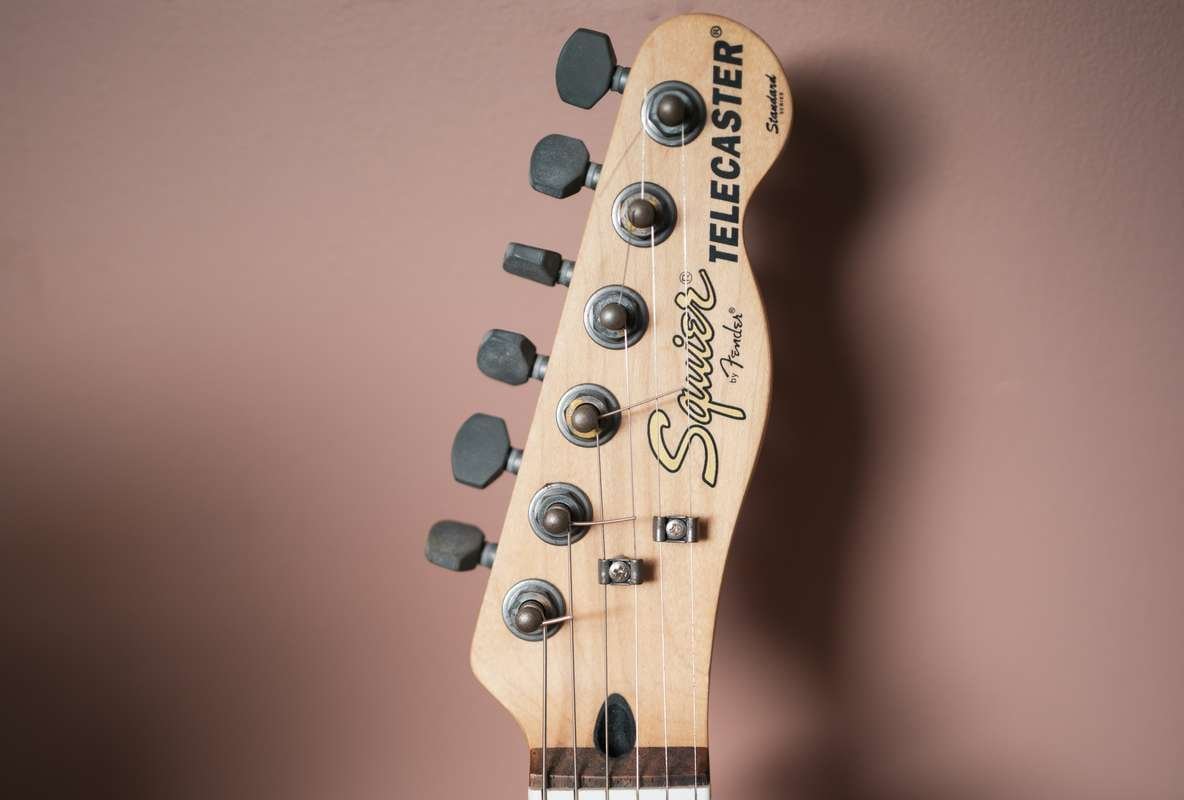

Squier Telecaster headstock. Photo by Florent Bertiaux on Unsplash

📋 Quick Answer: Fit the string gauge you intend to use, set relief around 0.010 in (0.25 mm), then set action near 1.6 mm high E / 2.0 mm low E at the 12th fret. Set pickup height next and intonate last — on a three-saddle bridge, intonation is a compensated compromise between each pair of strings. Make one small change at a time, retuning before every measurement.

What’s in this guide:

• Squier Tele setup specs — measurement methods and practical starting points
• Identify your bridge — three-saddle barrel, six-saddle string-through or top-load
• Neck relief and action — the correct adjustment order
• Pickup height and intonation — tone, then tuning
• Problem diagnosis, setup checklist and FAQ

Quick Answer: Squier Telecaster Setup Specs

For a comfortable all-round Squier Telecaster setup, begin at 1.6 mm (4/64 in) on the high E and 2.0 mm (5/64 in) on the low E at the 12th fret, with relief around 0.010 in (0.25 mm) on the common 9.5-inch-radius neck. Raise the action or add a little relief if playing hard produces persistent buzz.

Check	Method	Starting reference
Neck relief	Capo first fret, hold low E at last fret, measure the gap at the eighth fret	Around 0.010 in (0.25 mm) for a 9.5-inch-radius neck; 0.012 in (0.3 mm) for a 7.25-inch radius
Playing action	Open strings tuned to pitch, measure fret-top to string-bottom at the 12th fret	This article's practical example: 1.6 mm high E / 2.0 mm low E
Factory action comparison	Use the fret specified by the manufacturer	Fender's Telecaster table measures at the 17th fret: 4/64 in (1.6 mm) per side at 9.5–12 in radius — not directly comparable with 12th-fret readings
Pickup clearance	Hold the outer strings at the last fret, measure pole piece to string bottom	Follow the installed pickup's guidance; series name alone does not identify the pickup
Intonation	Compare the 12th-fret fretted note with its harmonic	Six-saddle: adjust each string. Three-saddle: compensate between each shared pair

These are starting measurements, not separate factory tolerances for each price tier. A Classic Vibe does not automatically need a different setup from an Affinity. Compare like-for-like measurements with Fender's Telecaster setup reference, which is also the source of the relief and factory action figures above. For the reference cards and a troubleshooting order you can keep on the bench, the Squier Setup Cheat Sheet collects the measurements and workflow in one printable PDF.

Before You Adjust Anything: Identify the Bridge and Pickups

Fender's own Telecaster setup guide starts from the fact that Teles ship with two distinctive bridge types: the vintage-style three-section bridge and the modern six-section bridge. Squier uses both — plus a top-loading variant — and the correct saddle procedure depends on which one is bolted to your guitar, not on the name on the headstock.

What you see on your guitar	Verified current example	What it means for setup
Three barrel saddles, each shared by two strings; strings fed through the body	Classic Vibe ’50s Telecaster — Fender lists a “3-Saddle Vintage-Style Strings-Through-Body Tele with Chrome Barrel Saddles”	Set height per saddle pair (tilt if needed); intonation is a compensated compromise — see Step 4
Six individual block saddles; strings fed through the body	Affinity Series Telecaster — Fender lists a “6-Saddle Strings-Through-Body Tele” bridge	Adjust height and intonation per string
Six individual block saddles; strings load through the back of the bridge plate only	Squier Sonic Telecaster — Fender lists a “6-Saddle Top-Load Tele with Block Saddles”	Same per-string adjustment; there are no body ferrules, so restringing differs slightly

Check the installed hardware rather than relying on “Affinity” or “Classic Vibe” alone: older runs, special editions and modified used guitars can differ from current production. A bridge with six saddles is not the same thing as a six-screw Strat tremolo — every Squier Tele is a fixed bridge, so there is no tremolo balance to set.

Check which pickups are installed

Pickup height targets depend on the pickup, and Squier Teles do not share one pickup type. Fender's current spec pages list ceramic single-coils on the Sonic and Affinity Telecasters, Fender-Designed alnico single-coils on the Classic Vibe ’50s Telecaster, and Wide Range humbuckers on the Classic Vibe ’70s Telecaster Deluxe and Thinline. Magnet material alone does not set output or the correct clearance, so treat Step 3's numbers as starting points and balance by ear.

Before turning any screw, fit the strings you actually intend to play. Current Sonic and Affinity Telecasters ship from the factory with .009–.042 sets, and many players move to .010–.046 — our best strings for Squier guide compares the options. Stretch new strings thoroughly, tune to pitch, and let the neck settle for 10–15 minutes before measuring.

You will need a 6-inch ruler with fine increments (or a string-height gauge), feeler gauges, a capo, a precise tuner, a Phillips screwdriver, and small hex keys — Fender lists a 4 mm truss-rod wrench and a 1.5 mm saddle-height wrench for the current Sonic Telecaster, and the same sizes cover most modern Squiers. Record your starting action and relief before changing anything, so every step below can be undone.

Step 1: Set the Neck Relief

Relief is the slight forward bow that gives vibrating strings room to move, and it is not the same thing as action. If relief is wrong, moving the saddles only hides the problem somewhere else on the neck.

Measure the relief

Capo the first fret, hold the low E string down at the last fret, and measure the gap between the bottom of the string and the top of the eighth fret with a feeler gauge. Fender's Telecaster reference specifies 0.010 in (0.25 mm) for a 9.5–12-inch-radius neck and 0.012 in (0.3 mm) for a 7.25-inch vintage-radius neck — both measurements taken exactly this way, so do not mix methods between sources.

Adjust slowly and recheck

Most current Squier Teles adjust at the headstock with a 4 mm hex wrench (confirmed on Fender's Sonic and Affinity spec pages); some vintage-style models adjust at the neck heel. Turn no more than one-eighth of a turn at a time — clockwise to reduce relief, counter-clockwise to add it — then retune and remeasure. Stop and see a technician if the nut feels seized, you are not sure which tool fits, or the neck needs a large correction.

Buzz concentrated above the 12th fret usually points to low saddles rather than relief; buzz on open strings points to the nut. Use that distinction before reaching for the truss rod.

Step 2: Set Squier Tele Action and Saddle Height

With the neck stable, measure action at the 12th fret with the guitar in playing position: top of the fret to bottom of the string. Try the practical starting example of 1.6 mm high E / 2.0 mm low E, then lower or raise in small steps to suit your touch. For factory-style targets measured at the 17th fret, see the guitar action height specs chart — just keep the two measurement points separate when comparing numbers.

Six-saddle bridges

Each string has its own saddle with two height screws. Detune the string slightly, turn both screws equally so the saddle stays level, retune and remeasure. The middle four saddles should follow the fretboard radius — 9.5 inches on most current Squier Teles — so the D and G strings sit between the outer two in a gentle arc rather than a flat line.

Three-saddle bridges

Each barrel saddle carries two strings (E/A, D/G, B/E), so perfect per-string height is not possible. Set the saddle height for the lower-sounding string of the pair, then tilt the saddle slightly if the higher string ends up too tall. This is the vintage trade-off: simpler hardware and a classic look in exchange for small compromises, which also apply to intonation in Step 4.

Test every fret on each string after adjusting, and check bends around frets 12–17 on the high E, where overly low action chokes notes out. A sharp fret end, a loose saddle screw or one visibly high fret needs a targeted repair, not a global action change.

Step 3: Set Pickup Height for Clearer Tone

Pickup height is a tone control disguised as a setup spec. Too close, and single-coils can sound harsh and pull notes out of tune on the upper frets; too far, and the bridge pickup loses its characteristic bite.

Hold the outer strings down at the last fret and measure from the bottom of the string to the top of the pole piece. Fender's Telecaster guide gives these starting points, which vary with the pickup's magnetic pull:

Installed pickup type	Bass side	Treble side
Vintage-style single-coil	6/64 in (2.4 mm)	5/64 in (2.0 mm)
Standard single-coil	5/64 in (2.0 mm)	4/64 in (1.6 mm)
Humbucker	4/64 in (1.6 mm)	4/64 in (1.6 mm)

These are general Fender references, not verified factory settings for every Squier series — a ceramic Affinity pickup is not automatically weaker or in need of a closer gap than an alnico Classic Vibe pickup. Set the bridge pickup first (its height screws are on the bridge plate), then switch between positions at the same amp setting and aim for even perceived volume. Lower the bass side if low strings sound boomy, and lower the whole pickup if high notes warble.

Step 4: Intonate Only After the Other Adjustments

Intonation decides whether the guitar plays in tune up the neck, and it shifts with action, relief and string gauge — which is why it comes last. Fender's Telecaster guide is explicit that intonation adjustments should be made only after tuning, relief, action and pickup height are done.

Tune the open string accurately, then compare the fretted 12th-fret note with the 12th-fret harmonic. If the fretted note is sharp, move the saddle away from the neck; if flat, move it toward the neck. Retune the open string after every move and repeat until the two readings are acceptably close.

• Six-saddle bridge: adjust each string individually with its intonation screw, slackening the string slightly before moving the saddle.
• Three-saddle bridge: each saddle is shared by two strings, so exact intonation on both is impossible. Fender's own guidance for the three-section bridge is to compensate between the strings — minimise how far any single string is sharp or flat and aim for an aurally pleasing result. Compensated aftermarket saddles are the common upgrade if the compromise bothers you.

Track the whole set with the free guitar intonation checker: enter your tuner reading per string, choose shared saddles for a three-saddle bridge or individual saddles for a six-saddle bridge, and it reminds you to recheck a shared saddle's partner string.

Common Squier Telecaster Problems, Diagnosed in Order

Symptom	Likely cause	First response
Buzz on open strings only	Nut slots cut too low or worn	Test by fretting at the first fret; nut work is a technician job.
Buzz on frets 1–5	Too little relief	Add a very small amount of relief, then retest.
Buzz above the 12th fret	Saddles too low or an isolated high fret	Raise the affected saddle slightly; inspect for a single high fret.
Guitar won't stay in tune	Nut friction, unstretched strings, poor winding	Lubricate the nut slots, stretch strings properly, wind 2–3 neat wraps.
Thin or warbling tone	Pickups too close to the strings	Lower the pickups, especially on the bass side.
One string always out of tune up the neck	Intonation not set (or a shared saddle compromise)	Revisit Step 4 after relief and action are stable.

The most important habit is changing one variable at a time and retesting. If you cannot get clean notes at a sensible action, or the truss rod resists a gentle adjustment, the guitar may need a fret level, nut work or a technician's inspection rather than more setup force.

Squier Telecaster Setup Checklist

1. Identify the bridge (three-saddle or six-saddle, string-through or top-load) and the installed pickups.
2. Fit the string gauge you will actually use and stretch it thoroughly.
3. Tune to pitch, let the neck settle, and record your starting measurements.
4. Set relief at the eighth fret in small truss-rod increments.
5. Set outer-string action at the 12th fret, then match the saddle radius (or balance each saddle pair on a three-saddle bridge).
6. Set pickup height with the strings held at the last fret, then balance by ear.
7. Intonate each string — compensating shared saddles on a three-saddle bridge.
8. Test bends, chords and all three pickup positions.

For a broader series comparison, see the complete Squier setup guide. If your Squier has a tremolo instead of a fixed bridge, the Squier Stratocaster setup guide covers the spring-balance steps a Tele never needs, and Fender-branded Tele owners can use the dedicated Telecaster setup guide. The Setup Specs Lookup is useful for checking factory-style measurements by model.

Stratocaster-style guitar shown for illustration only — the bridge and pickup tables above describe Telecaster hardware. Photo by Felipe Randolfi on Unsplash

Frequently Asked Questions

What is the correct string height for a Squier Telecaster?

Use the same measurement method every time. This guide's practical starting example is 1.6 mm on the high E and 2.0 mm on the low E at the 12th fret; Fender's factory table measures at the 17th fret instead (4/64 in per side for a 9.5–12-inch-radius neck). Adjust for clean bends and your picking strength rather than chasing the lowest possible number.

How much neck relief does a Squier Telecaster need?

Fender's Telecaster reference specifies 0.010 in (0.25 mm) at the eighth fret for a 9.5–12-inch-radius neck — the radius fitted to most current Squier Teles — and 0.012 in (0.3 mm) for a 7.25-inch vintage radius. Measure with a capo at the first fret and the string held at the last fret.

What is the difference between three-saddle and six-saddle Tele bridges for intonation?

A six-saddle bridge lets you set intonation for each string individually. On a three-saddle bridge each saddle is shared by two strings, so perfect intonation on both is impossible — Fender's own guidance is to compensate between the strings so no single string is far off, and compensated aftermarket saddles are the usual upgrade.

Why does my Squier Telecaster buzz?

Match the symptom to the location: buzz on open strings points to the nut, buzz on frets 1–5 to too little relief, and buzz above the 12th fret to low saddles or an isolated high fret. Diagnose before adjusting, and change one thing at a time.

What pickup height should I use on a Squier Telecaster?

Measure with the outer strings held at the last fret and start from the installed pickup's guidance. Fender's general references are 6/64 in bass / 5/64 in treble for vintage-style single-coils and 5/64 in / 4/64 in for standard single-coils. Ceramic or alnico construction alone does not set the right gap — measure, then balance by ear.

Can I use Fender Telecaster setup specs on a Squier?

Yes, as long as the radius, bridge and pickup type match and you copy the measurement method — Fender measures action at the 17th fret and relief at the eighth. A Squier Tele uses the same fixed-bridge layout, so the Fender Telecaster procedure transfers directly once you have identified your hardware.

What tools do I need to set up a Squier Telecaster?

A 6-inch ruler or string-height gauge, feeler gauges, a capo, a precise tuner, a Phillips screwdriver and small hex keys cover the whole job. Fender lists a 4 mm truss-rod wrench and 1.5 mm saddle-height wrench for the current Sonic Telecaster; the same sizes fit most modern Squiers.

Why won't my Squier Telecaster stay in tune?

The usual causes are strings that were never stretched, friction in the nut slots, or messy winding at the posts — in that order. Lubricate the nut with graphite, stretch new strings until they hold pitch, and wind two to three neat wraps before considering replacement tuners.

Should I upgrade the bridge on my Squier Telecaster?

Only to solve a specific problem. A six-saddle bridge gives per-string intonation if a three-saddle compromise bothers you, and compensated saddles improve a vintage bridge without changing its look. Check screw spacing and string-through versus top-load compatibility against your actual guitar before ordering anything.

Conclusion: Set It Up Once, Then Keep a Record

A good Squier Telecaster setup is a repeatable sequence, not a mystery: identify the bridge and pickups, set relief, set action, balance the pickups, then intonate. Write down the final measurements — relief, action on both E strings, pickup gaps and string gauge — because that record turns the next string change from a fresh project into a ten-minute check.
