Telecaster Truss Rod Adjustment and Relief Specs — Safe, Step-by-Step Guide

Master Telecaster neck relief the safe way. This guide covers exact Telecaster truss rod relief specs, how to measure with feeler gauges, which direction to turn and by how much, plus pro tips to avoid damage. Fix fret buzz, reduce clank, and dial in butter-smooth playability.

Telecaster Truss Rod Adjustment and Relief Specs — Safe, Step-by-Step Guide

Getting Telecaster neck relief right is one of the biggest playability upgrades you can make. Too little relief and you’ll hear widespread fret buzz; too much and the action feels stiff and unresponsive. This guide gives you crisp specs, a step-by-step method, and safety best practices so you can adjust with confidence.

If you need a complete setup flow (action, pickups, intonation), see our main Telecaster Setup Guide.

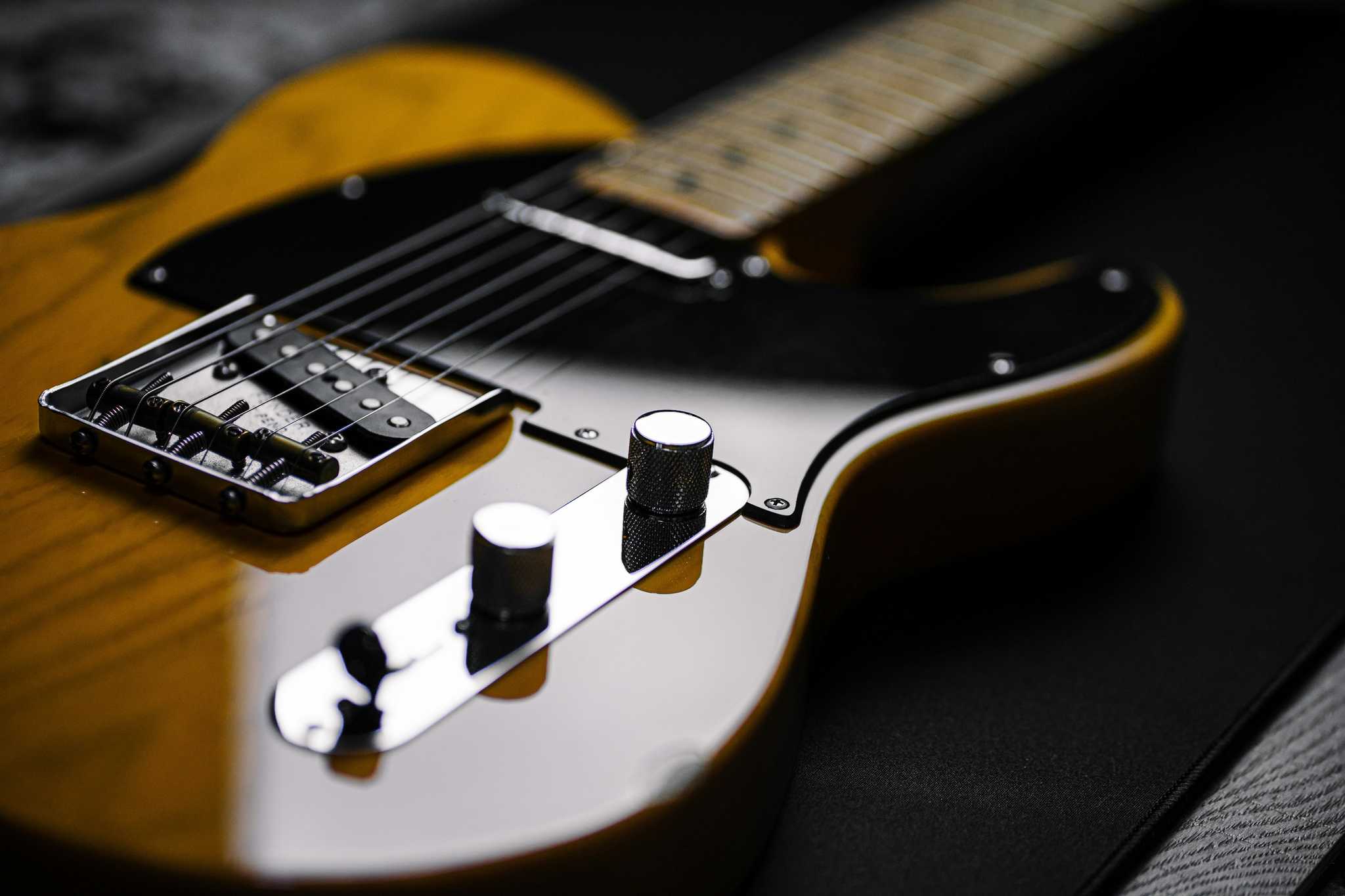

Telecaster Truss Rod Photo by Chris Hardy on Unsplash

Target Relief Specs (Telecaster)

  • Typical target: 0.20–0.30 mm (0.008–0.012 inches)
  • Fingerstyle light touch: 0.15–0.25 mm (0.006–0.010 inches)
  • Heavy pick or aggressive strumming: 0.25–0.35 mm (0.010–0.014 inches)

Relief is measured at the midpoint of the neck (7th–8th fret) while the string is fretted at the last fret and a capo is at the 1st fret.

Tools You’ll Need

How to Measure Neck Relief

  1. Tune to pitch (use a precise tuner like the Boss TU-3 Chromatic Tuner).
  2. Place a capo at the 1st fret.
  3. Fret the low E at the last fret with your picking hand.
  4. Measure the gap at the 7th–8th fret using feeler gauges (the MusicNomad Precision Truss Rod Gauge makes this quick).
  5. Compare to the target spec; repeat on the high E side to spot twist or uneven relief.

Adjustment Basics (Clockwise vs Counterclockwise)

  • Clockwise (tighten): Reduces relief (straightens neck)
  • Counterclockwise (loosen): Increases relief (adds forward bow)

Move in tiny increments: 1/8 turn at a time, then retune and re-measure. Give the neck a few minutes to settle between adjustments. On vintage-style heel-adjust rods, remove the neck carefully and make smaller increments.

Step-by-Step: Dialing in Telecaster Relief

  1. Evaluate: Measure current relief with feeler gauges.
  2. Plan: Choose a target within the ranges above based on your technique.
  3. Adjust: 1/8 turn in the needed direction. Retune.
  4. Settle: Let the neck settle, then re-measure.
  5. Play-test: Fret chords low and high; play single notes up the neck; listen for buzz or choking on bends.
  6. Iterate: Repeat small moves until you hit the target and the feel you want.

Troubleshooting

  • Buzz everywhere, more in the lower frets: Add a touch of relief (loosen).
  • Choking or sitar-like noise above the 12th: Check action and saddle radius; verify relief isn’t too low.
  • Only open strings buzz: Nut slots likely too low; truss rod won’t fix this.
  • Seasonal shifts: Expect small tweaks with humidity/temperature changes.

Relief, Action, and Nut Height — How They Interact

Neck relief, saddle height, and nut height work together. If you lower action aggressively at the bridge, ensure there’s still a slight forward bow so strings have room to vibrate mid‑neck. If first‑position chords feel stiff even with good action, the nut may be too high. Conversely, open‑string buzz with clean fretted notes indicates nut slots too low.

Vintage Heel‑Adjust Tips (Safety First)

On vintage‑style Telecasters with heel‑adjust truss rods, detune, remove the neck carefully, and make smaller moves. Keep adjustments to 1/8 turn or less, then reassemble, retune, and re‑measure. Have the correct driver or MusicNomad Truss Rod Wrench Set (MN235) ready so you don’t strip hardware.

Seasonal Maintenance and String Gauge Changes

Dry winters and humid summers shift relief. Check it at each string change and after any gauge swap. Heavier strings may allow slightly less relief; lighter strings may require a touch more. A case‑humidifier like D'Addario Humidipak helps keep movement predictable.

FAQ

What’s the safest amount to turn the truss rod?

No more than 1/8 turn at a time. Re-tune, re-measure, and reassess before continuing.

Will relief change my action?

Yes. More relief raises the action in the middle of the neck and can mask minor fret issues; less relief lowers mid‑neck action and can expose buzz if frets aren’t level.

Where should I start if I don’t know my preference?

Start at ~0.25 mm (0.010 inches) and adjust by feel.

Do I need to detune before adjusting?

For small 1/8‑turn moves, you can often adjust at pitch on modern headstock-access rods. For heel-adjust vintage styles, detune and remove the neck to avoid stress.

What if the truss rod feels tight?

Stop. Don’t force it. Take it to a pro—overtightening can damage the rod or neck.

Should I lubricate the nut and saddles when chasing buzz?

Yes—reducing friction helps overall stability. A dedicated lubricant like MusicNomad TUNE‑IT is cleaner and longer‑lasting than graphite.

Which feeler gauges should I buy?

A set with both metric and imperial blades is ideal. The MusicNomad Precision Truss Rod Gauge or a standard 32‑blade set both work great.

Related Guides

Frequently Asked Questions (FAQ)

How often should I check Telecaster neck relief?

At every string change and when seasons or humidity shift. Small preventive tweaks keep action consistent.

Is a slight back‑bow ever ok?

No. Back‑bow typically causes widespread buzz. Aim for slight forward relief within the spec ranges.

Do heavier strings change the ideal relief?

Often yes. Heavier gauges increase tension and may allow slightly less relief. Re‑measure after any gauge change.

Can the truss rod fix high action past the 12th fret?

Not directly. Relief affects the mid‑neck. High action higher up is usually saddle height, bridge radius, or neck angle (shim) related.

Should I loosen strings on vintage heel‑adjust Telecasters?

Yes. Detune and remove the neck to access the adjuster. Make tiny moves and reassemble to check.

What’s the best starting relief for a low‑action Tele?

Start around 0.25 mm (0.010 inches). If buzz concentrates mid‑neck, add a hair more relief; if it feels stiff but clean, try a hair less.

How do I tell if the nut is too high?

If first‑fret notes feel sharp/stiff while mid‑neck action is comfortable, the nut is likely high. Compare the gap over the 1st fret with a feeler gauge and address nut slots instead of the truss rod.

Can lubricant really reduce buzz and tuning drift?

Yes. Reducing friction at the nut and saddles improves tuning return and helps avoid pinging. Apply a small amount of MusicNomad TUNE‑IT during setups.

Which tools do I actually need as a minimum?

Capo, feeler gauges, correct truss‑rod wrench, and a reliable tuner like the Boss TU-3 Chromatic Tuner. A D'Addario Multi-Tool is handy for on‑the‑spot tweaks.

Will heavier strings change my relief target?

Often. Heavier sets increase tension and may let you run slightly less relief. Re‑measure after restringing.

My truss rod won’t turn easily—what now?

Stop and see a pro. Forcing a tight rod risks permanent damage.

Comprehensive Truss Rod Setup Checklist

Related Guides and Further Reading

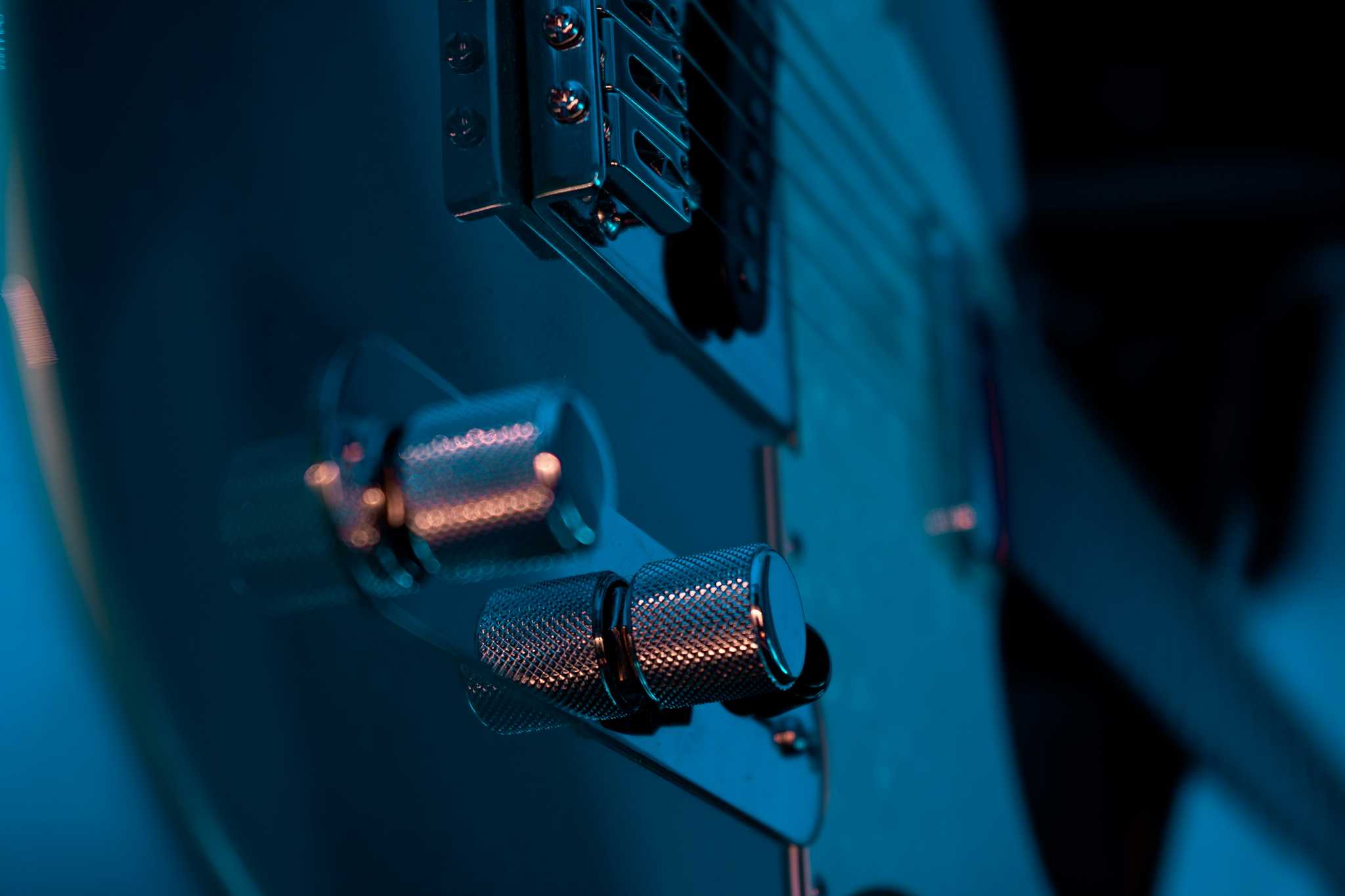

Telecaster Guitar Photo by Krzysztof Hepner on Unsplash
