Set Up Your Fender
Like a Pro.
Exact Strat & Tele specs for action, relief, intonation & pickup height. One printable PDF. No guessing. No conflicting advice.
Free setup advice is scattered,
inconsistent, and often wrong.
This guide gives you exact Fender measurements in one place — tested, structured, and safe to follow even if you've never adjusted a neck before.

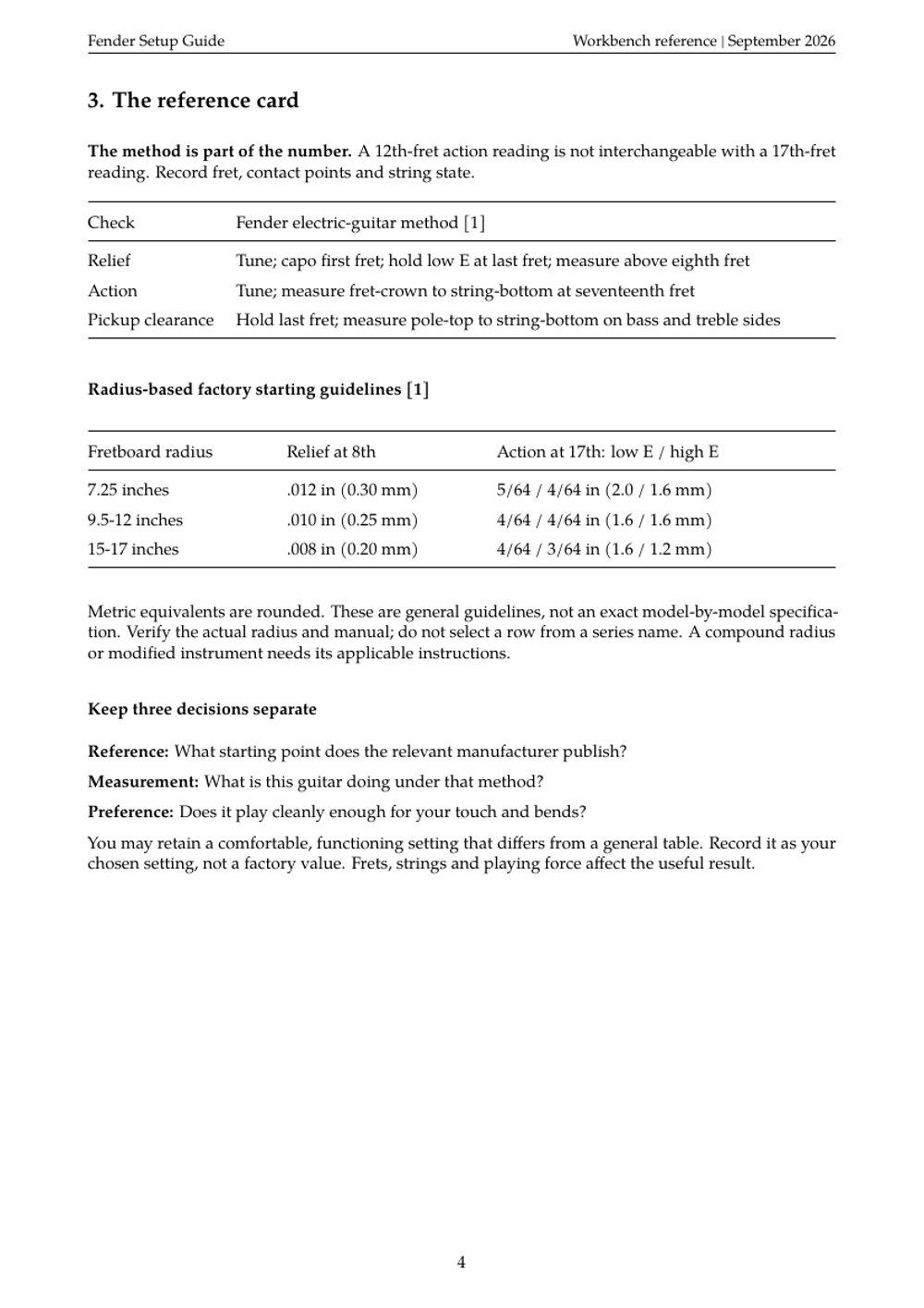

Everything on one printable card.

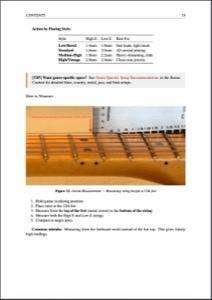

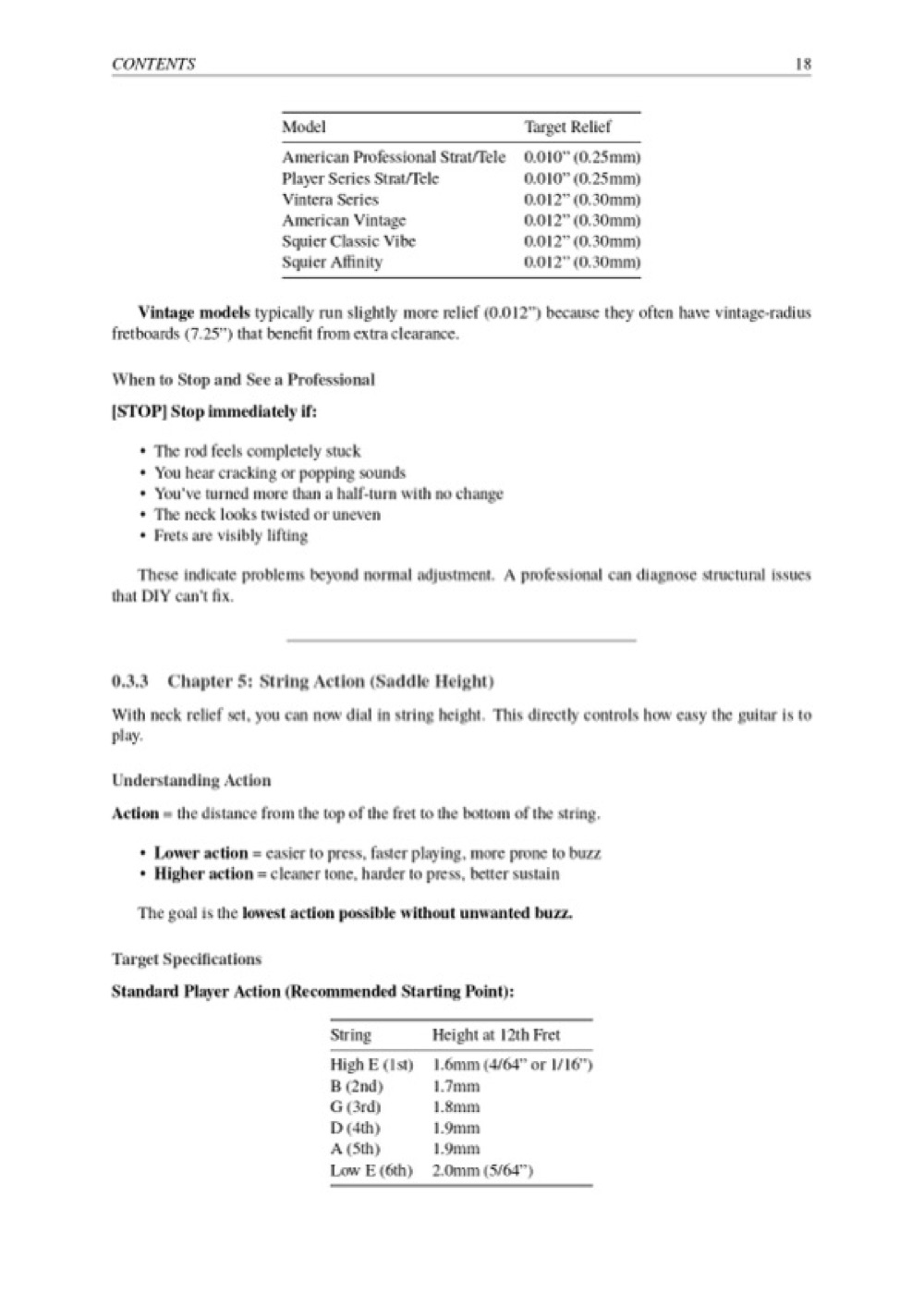

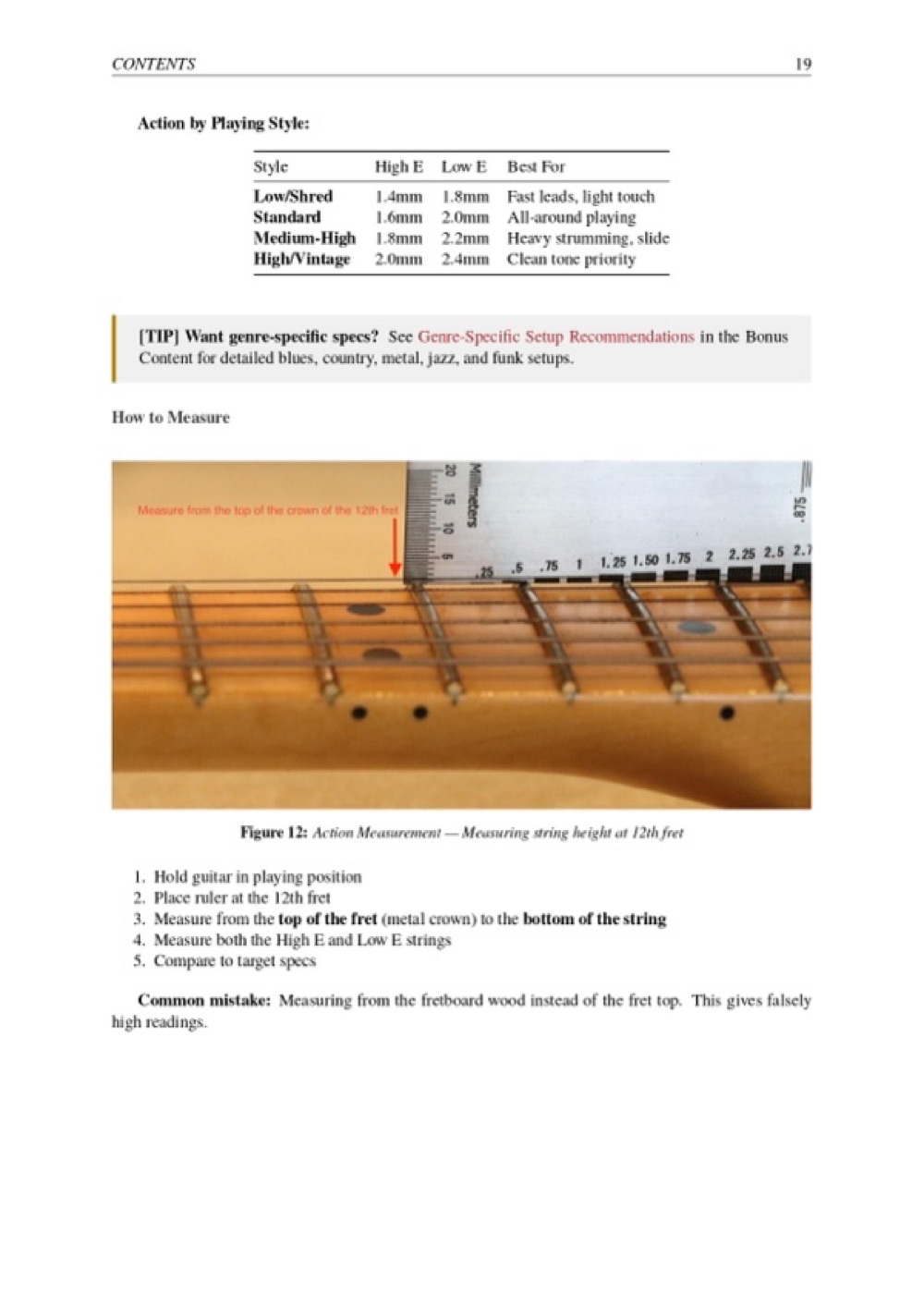

- Action heightsHigh E to low E, in inches and mm — Strat & Tele

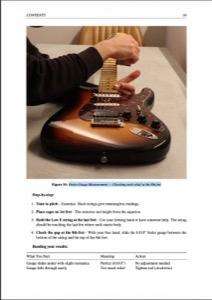

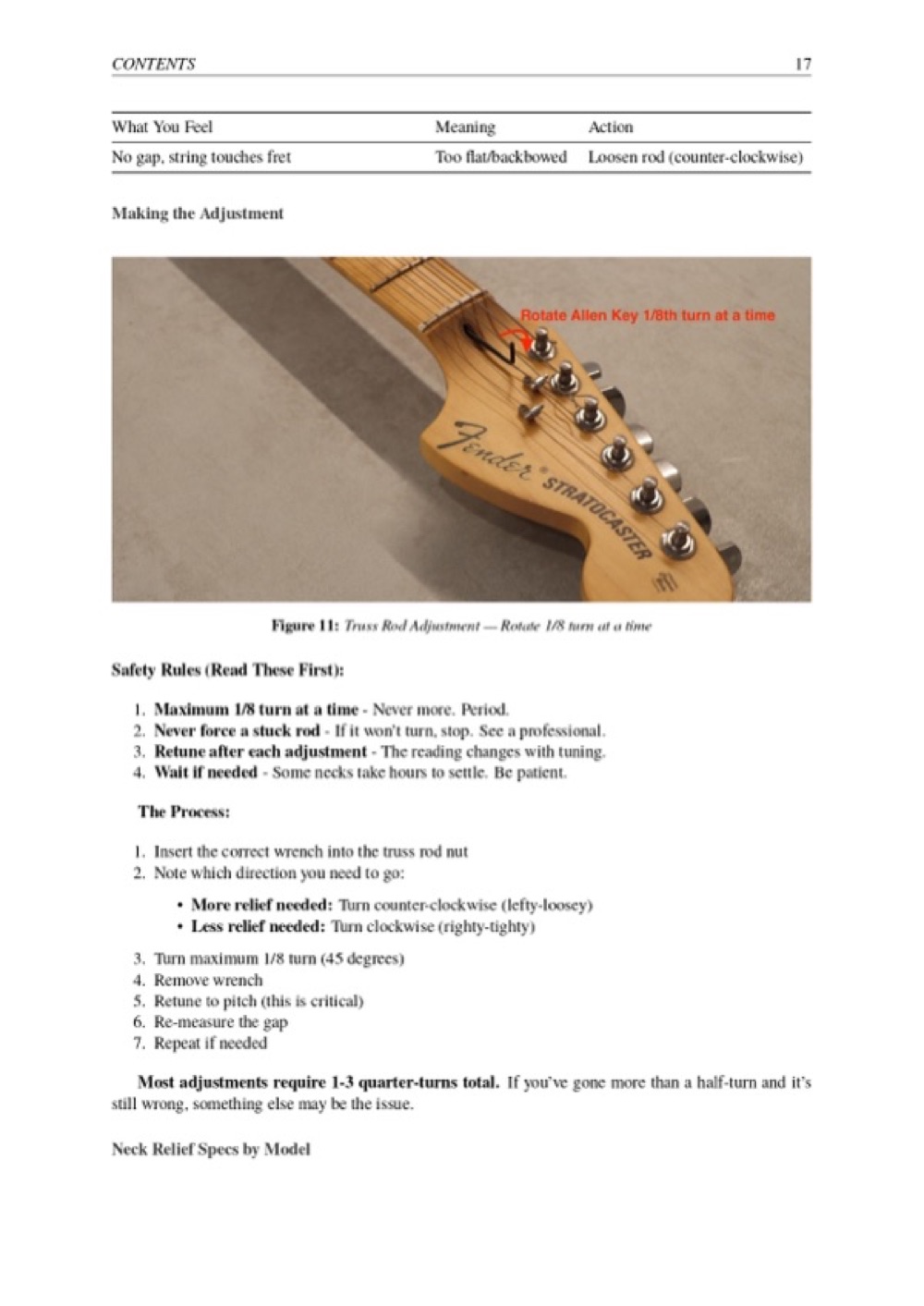

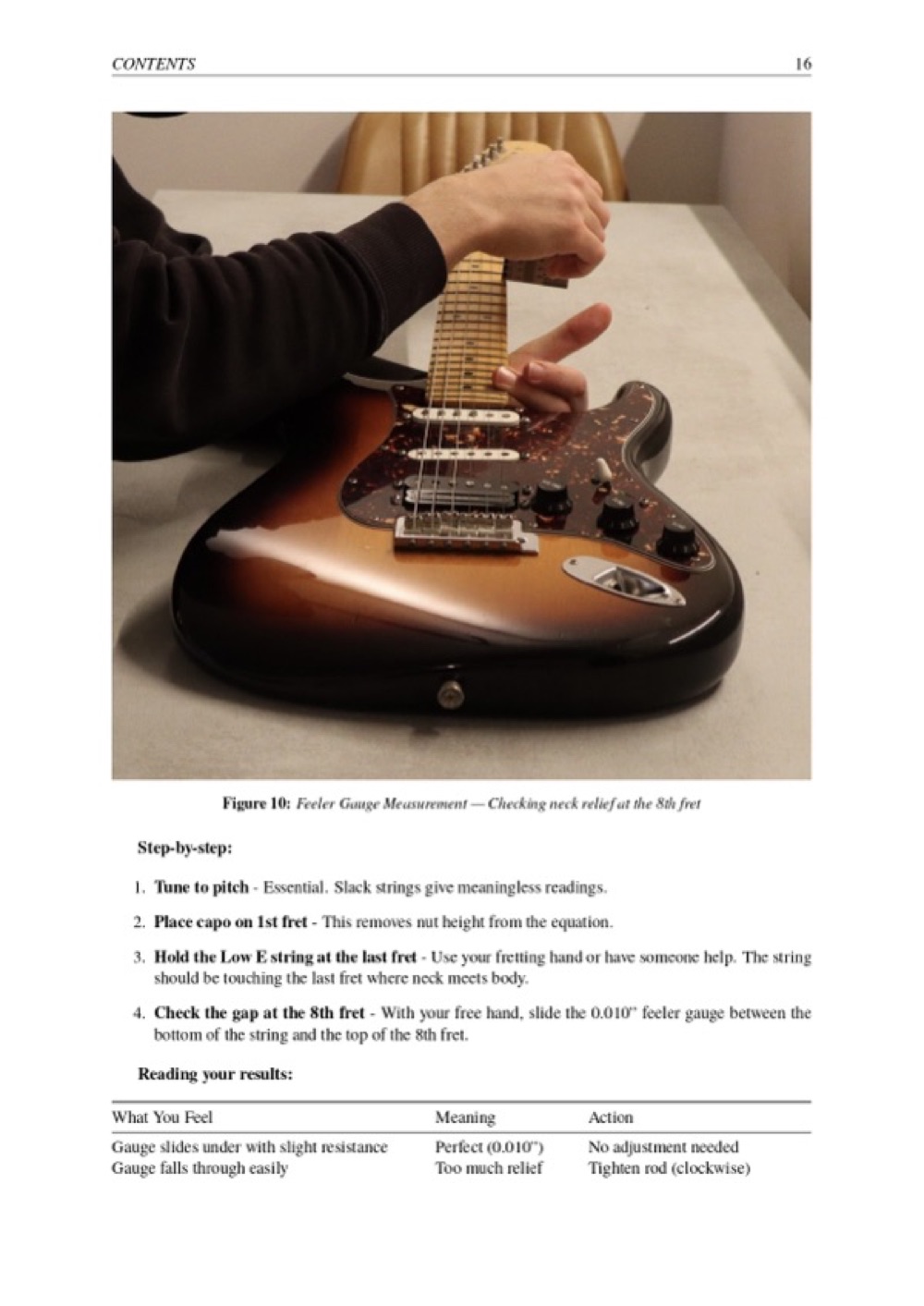

- Neck reliefTruss rod settings by season and string gauge

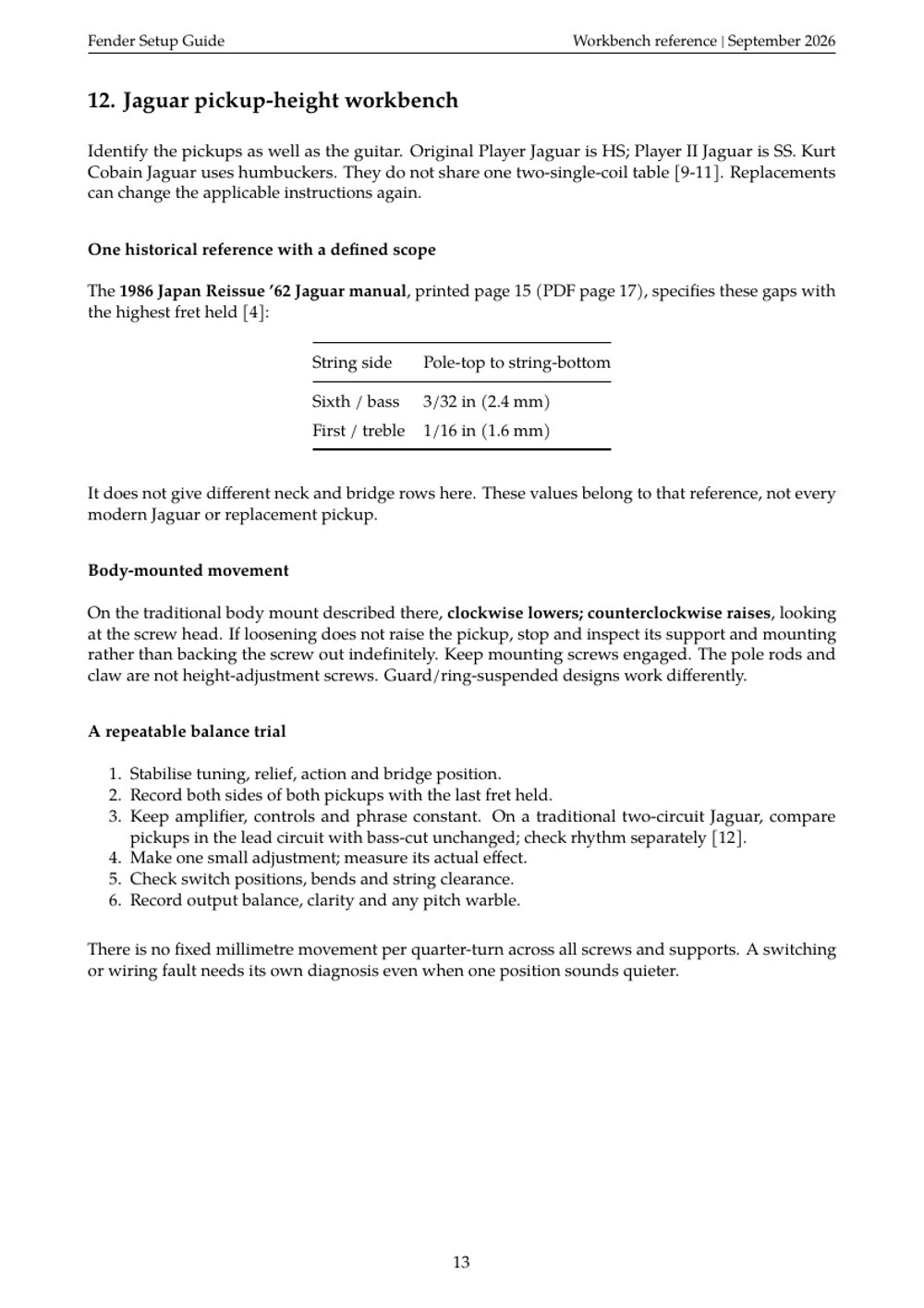

- Pickup heightsSingle coil specs for every Fender era

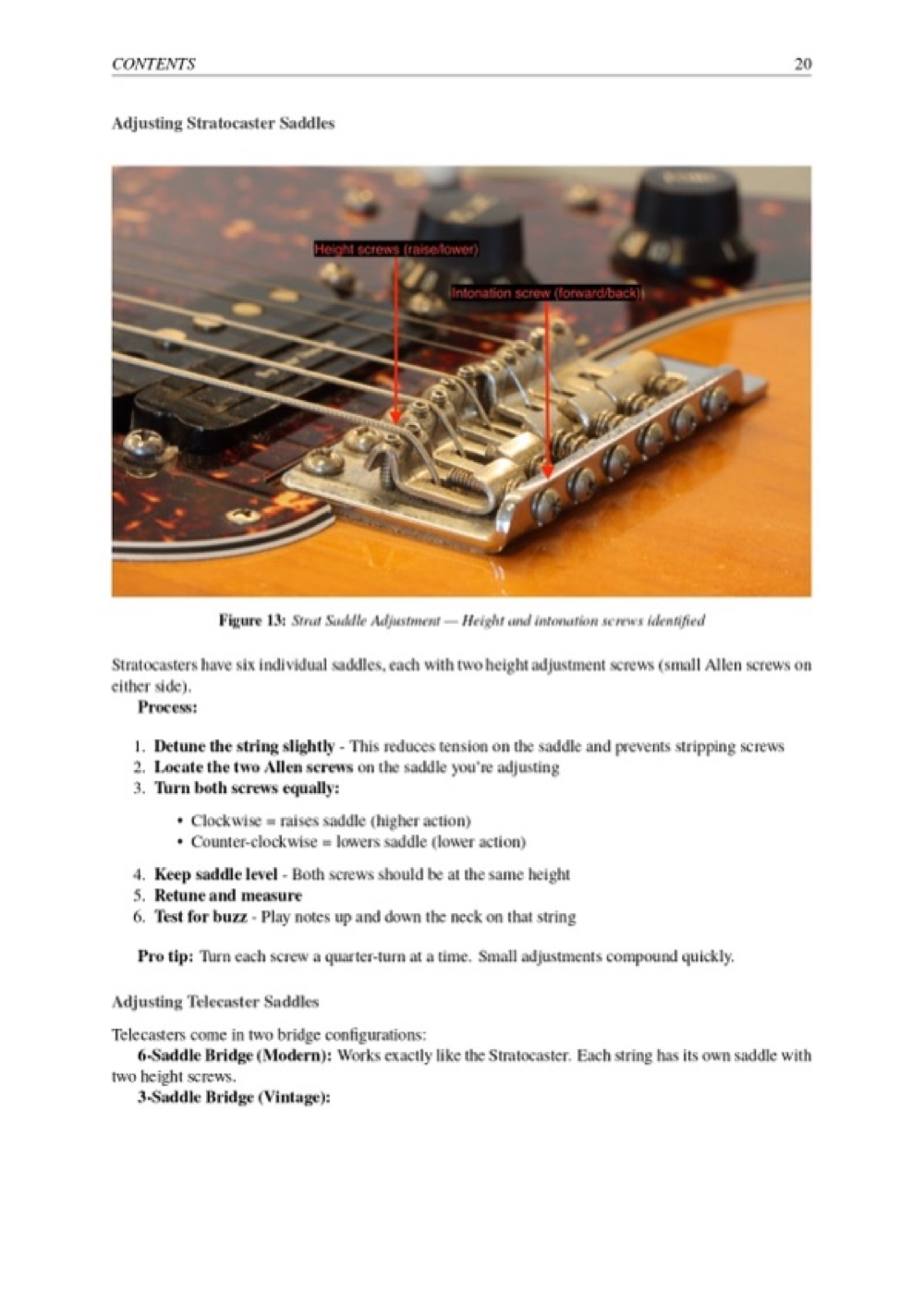

- IntonationStep-by-step with photos and troubleshooting

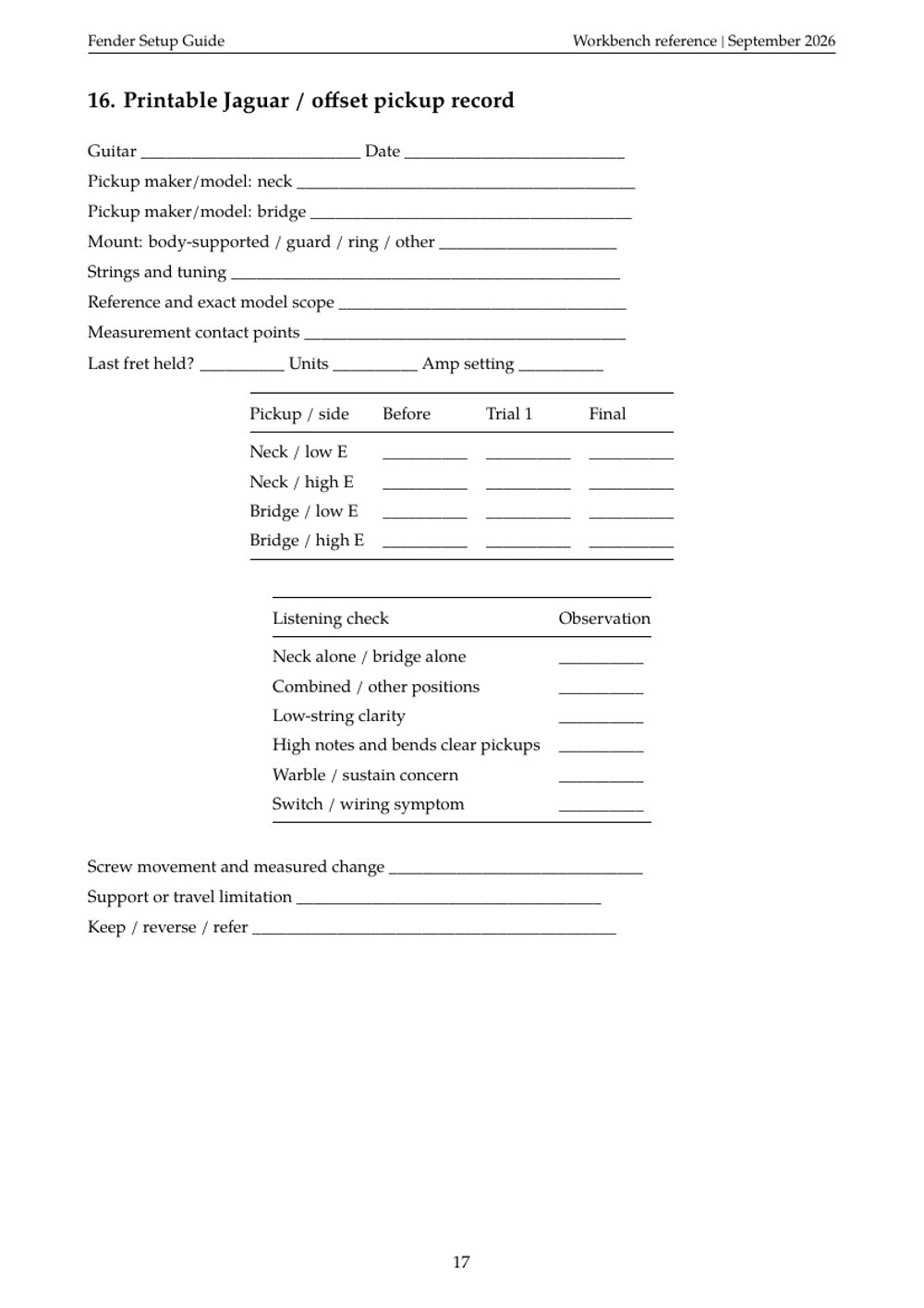

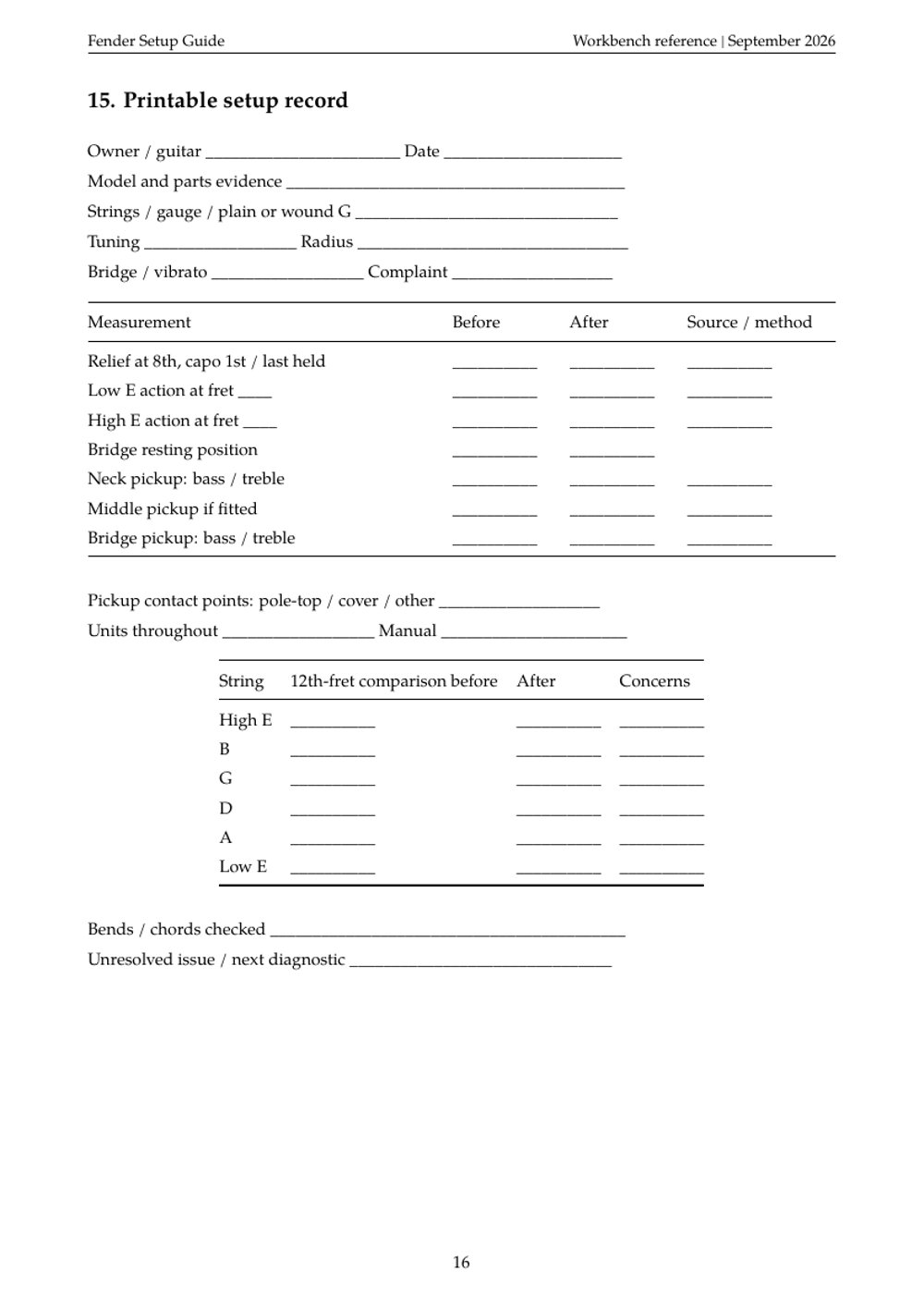

- Printable cardsDesigned to sit on your workbench while you work
The difference is measurable.
| Free online info | This guide | |
|---|---|---|
| Consistent, tested specs | ✗ | ✓ |
| Clear step-by-step order | Varies | ✓ |
| Printable workbench card | ✗ | ✓ |
| No ads or distractions | ✗ | ✓ |
| Brand-specific measurements | Rarely | ✓ |
| Troubleshooting flowcharts | ✗ | ✓ |
Real results from real players.
“This has answered many of the probably basic questions that I needed. Very clear instructions and real talk, not technical speak. I'm tired of paying $150–200 for setups and waiting forever. This helped me more than anything else out there.”
“I love the charts. Different information was one of my problems — diagrams showing the wrong strings, relief gauges showing .060 for electric guitars. Your guide cleared up all that confusion. Thank you!”
“If an expert like yourself broke the knowledge down correctly, then more players like myself could set up their own guitars the way they specifically want. This is a great knowledge base.”
Common questions.
Own a Gibson too?
Get both for $35.
The Gibson & Fender Setup Bundle covers Les Paul, SG, ES-335, Strat, Tele and every bolt-on Fender in one checkout. Save $3 vs. buying separately.
Stop paying for setups.
Start playing better.
54 pages. Instant download. 30-day refund. One-time payment.
