01 · PRS Setup GuideSet Up Your PRS
Set Up Your PRS
Like a Pro.
Exact specs for Custom 24, McCarty, CE 24 & Silver Sky — trem float, stoptail bridges, action, relief & pickup height. One printable PDF. No guessing.
$19
$25
One-time payment 30-day refund Instant PDF No account needed
02 · The problemFree setup advice is scattered,
Free setup advice is scattered,
inconsistent, and often wrong.
This guide brings PRS measurement methods, hardware checks and sourced starting points together, with illustrated steps and clear limits for each adjustment.
30 min
to complete a full setup
$85–$159
$19
this guide, once, forever
54 pages
full color, printable

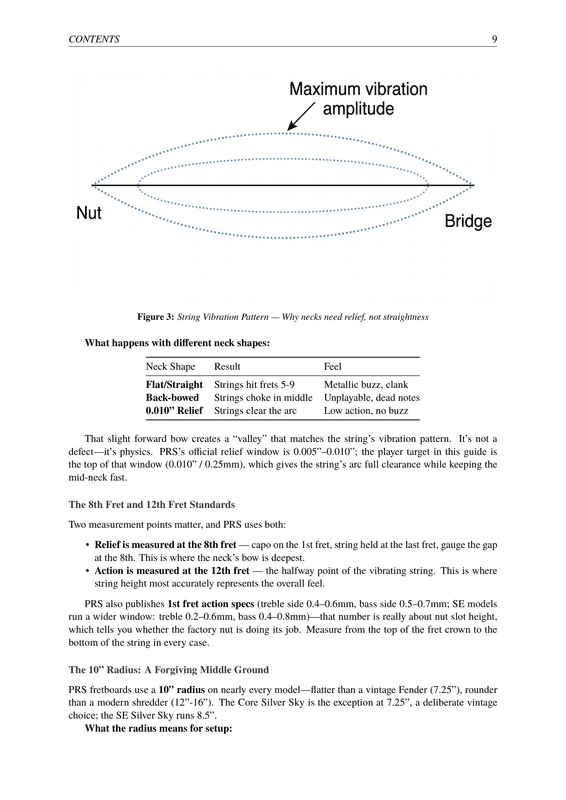

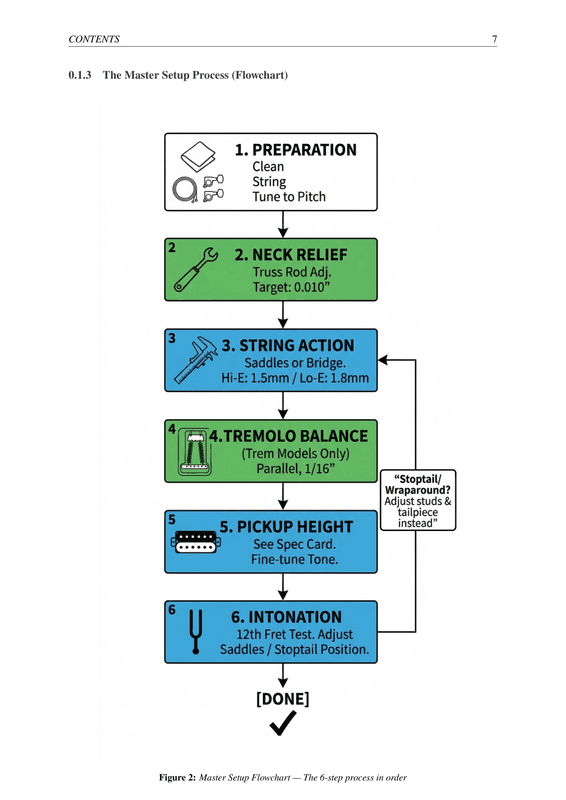

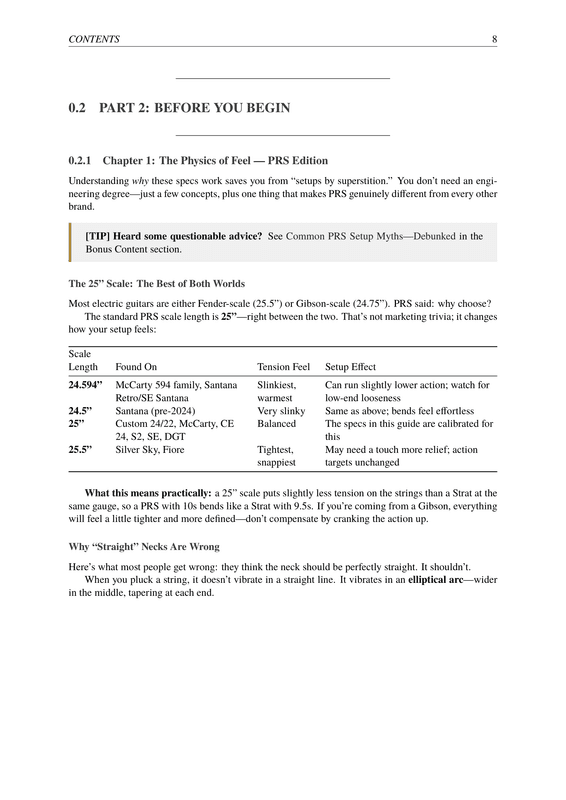

03 · Inside the guide
Everything for your PRS in one guide.
- Neck reliefTruss rod settings for PRS necks, in inches and mm
- Action heightsHigh E to low E for trem and stoptail models
- Tremolo floatStandard PRS balance and separate Silver Sky checks
- Stoptail & wraparoundBridge and tailpiece height, step by step
- Pickup heightsGeneral humbucker and single-coil starting references
- Printable cardsDesigned to sit on your workbench while you work
$19
$25
One-time payment 30-day refund Instant PDF No account needed
04 · Free vs this guide
The difference is measurable.
| Free online info | This guide | |
|---|---|---|
| Manufacturer-linked references | ✗ | ✓ |
| Clear step-by-step order | Varies | ✓ |
| Printable workbench card | ✗ | ✓ |
| No ads or distractions | ✗ | ✓ |
| Model-specific measurements | Rarely | ✓ |
| Trem & stoptail both covered | ✗ | ✓ |
What customers are saying
No verified reviews yet. Reviews from verified purchasers appear here automatically after they complete their setup.
Read what other buyers said →06 · FAQ
Common questions.
Is this a subscription?
No — it's a one-time payment. Pay once and the guide (including all future updates) is yours. No recurring charges, nothing to cancel.
Which PRS guitars does this cover?
Common PRS six-string electrics, with separate standard tremolo, Silver Sky and stoptail guidance. Identify your model and fitted bridge before applying a measurement. Modified instruments, Floyd Rose systems, baritones and seven-strings need their own documentation.
Does it cover the SE import line?
It includes SE hardware and measurement differences, including a separate SE Silver Sky reference. It is not a complete catalogue of every SE model or year; check the fitted bridge and the linked manufacturer specifications.
Does it cover both tremolo and stoptail PRS models?
Yes. The standard PRS tremolo uses a parallel float; Silver Sky models have a separate factory setup with the rear edge resting on the body. The guide distinguishes pre-compensated wraparound, individually adjustable stoptail and two-piece bridges, and explains which adjustments belong to each.
Do I need special tools?
A string height gauge (~$8), feeler gauges (~$8), tuner, capo and drivers that fit your hardware. The covered Maryland PRS necks use a 5/16-inch nut driver; SE uses 7 mm. Bridge tools vary. A basic electric toolkit is approximately ~$40; check what you already own.
I'm a complete beginner — will I understand this?
The guide combines plain-language steps, original instructional diagrams, two general-method photographs, reference tables and printable records. It explains how to measure, identify the fitted hardware and recognize when to stop.
Is there a guarantee?
Yes — 30-day, no-questions-asked. If it doesn't help you set up your PRS better, email for a full refund.
What format is it?
A searchable PDF with printable workbench references and a setup log, available by instant download.
Will I get future updates?
Yes. Future updates are free. Reopen your original purchase-confirmation link to download the latest version. If you need another copy or bought elsewhere, contact help@owningafender.com with your receipt.
08 · Get the guide
Work through your setup, one check at a time.
Check relief, action, pickups and intonation with guidance for tremolo, stoptail and Silver Sky hardware. 54 pages. Instant download. 30-day refund. One-time payment.
Secure checkout·Instant download·30-day guarantee
$25$19
