Telecaster Pickup Height: The Complete Guide to Dialing In Your Tone

Getting your Telecaster pickup height right is one of the simplest, most impactful adjustments you can make — and it costs nothing. The Telecaster's two pickups are fundamentally different from each other: a bright, baseplate-mounted bridge pickup and a warm, chrome-covered neck pickup. This asymmetry means you can't just set them to the same height and call it done. Proper Telecaster pickup height adjustment balances the iconic bridge "twang" against the neck's warmth, giving you a guitar that sounds great in every switch position.

In this guide you'll get exact Fender factory specifications for Telecaster pickup height, a step-by-step adjustment walkthrough, style-specific recommendations for country, blues, rock, and jazz, and a full troubleshooting section. Whether you own a Player Series, American Professional, Squier Affinity, or a vintage reissue, these specs apply to all standard Telecaster single-coil pickups.

Factory Specs Tool to compare your current setup against factory standards, or add it to My Garage to track maintenance.

What Makes Telecaster Pickups Unique?

Quick Answer: The Telecaster bridge pickup is mounted on a steel baseplate that focuses its magnetic field and adds midrange punch. The neck pickup is a smaller, chrome-covered unit designed for warm, round tones. This asymmetric design makes pickup height adjustment especially important.

The Telecaster was the first mass-produced solid-body electric guitar, and its pickup design reflects Leo Fender's pragmatic engineering. Unlike Stratocasters (three identical-ish single coils) or Jazzmasters (two wide, flat pickups), the Telecaster uses two completely different pickup designs in a single guitar.

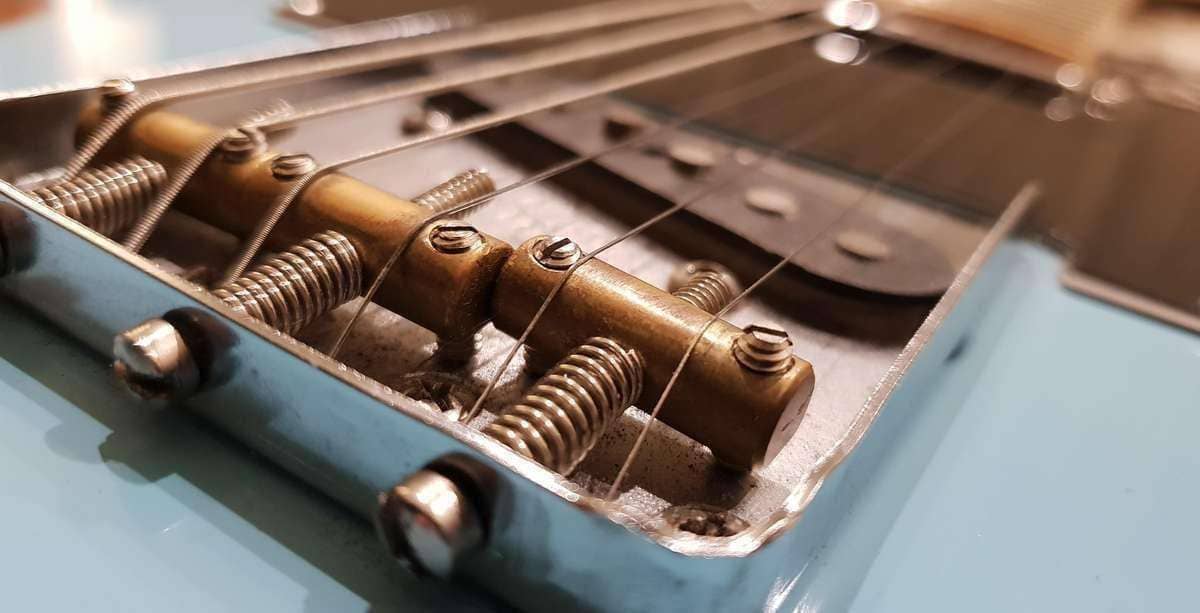

Bridge Pickup: The Twang Machine

• Mounted on a steel baseplate — the metal plate focuses the magnetic field, adding midrange punch and the signature "twang"
• Overwound compared to Strat pickups — hotter output with more aggressive attack
• Brass vs steel saddles affect tone — brass is warmer, steel is brighter (this interacts with pickup height)
• Very sensitive to height changes — the baseplate amplifies the effect of small adjustments

Neck Pickup: The Warm Counterpart

• Chrome cover acts as a shield — reduces noise and slightly warms the tone
• Smaller coil than the bridge pickup — lower output, smoother frequency response
• Designed for rhythm and jazz tones — warm, round character that contrasts with the bridge
• Less sensitive to height changes — the chrome cover provides some magnetic shielding

Why This Matters for Setup

Because the two pickups are so different, getting the balance right between them is the real challenge. A Telecaster with poorly balanced pickups will have a jarring volume jump when switching positions — the bridge will be ice-pick bright while the neck sounds muddy and quiet, or vice versa.

Telecaster Pickup Height Specs: Fender Factory Measurements

Quick Answer: Fender recommends 6/64" (2.4mm) on the bass side and 5/64" (2.0mm) on the treble side for both neck and bridge Telecaster pickups. Measure from the top of the pickup pole piece to the bottom of the string with the string fretted at the last fret.

All measurements are taken with the string fretted at the last (highest) fret, measuring from the top of the pickup pole piece to the bottom of the string.

Fender Factory Specifications

Why Both Pickups Share the Same Spec

Fender sets both Telecaster pickups at the same factory height, but they sound very different at that height because of their construction:

• The bridge pickup's steel baseplate concentrates its magnetic field, producing hotter output even at the same distance
• The neck pickup's chrome cover slightly attenuates the signal, producing a warmer, quieter tone
• String vibration amplitude is naturally greater at the neck position, which partially compensates for the neck pickup's lower output

In practice, many players end up lowering the bridge pickup slightly below factory spec to tame the treble, or raising the neck pickup slightly for better balance. We'll cover style-specific adjustments below.

Measurement Tips for Telecaster Pickups

1. Measure from the pole piece — on the bridge pickup, measure from the top of the visible pole piece (the magnet), not from the baseplate edge
2. On the neck pickup, measure from the top of the pole piece visible through the chrome cover slots
3. Use a precision ruler or string height gauge — the Jim Dunlop String Height Gauge works perfectly
4. Always fret at the last fret before measuring — this shows the minimum distance the strings ever get to the pickups

Step-by-Step Telecaster Pickup Height Adjustment

Now let's walk through the complete adjustment process for both pickups.

Tools You'll Need

• Small Phillips screwdriver (for pickup mounting screws)
• 6" ruler or precision measuring tool like this Jim Dunlop String Height Gauge
• Capo (optional, for fretting at the last fret)
• Tuner like the Boss TU-3 Chromatic Tuner (to ensure accurate pitch during testing)
• Cable and amplifier (for tone testing)
• Guitar setup tool like the D'Addario Multi-Tool for various adjustments

Preparation

1. Tune your guitar to pitch — pickup height measurements only work at proper string tension
2. Set your action and neck relief first — pickup height should be the last adjustment in your setup sequence (truss rod → action → pickups → intonation)
3. Clean your workspace — avoid scratching the finish around the pickguard or bridge plate

Adjusting the Bridge Pickup

The bridge pickup defines the Telecaster's signature sound — that bright, cutting "twang" that has driven country, rock, and blues for over 70 years:

1. Fret the low E string at the last fret (or use a capo)
2. Measure the gap between the top of the pole piece and the bottom of the string
3. Target: 6/64" (2.4mm) on the bass side
4. Turn the pickup mounting screws:
   • Clockwise to lower the pickup (away from strings)
   • Counter-clockwise to raise the pickup (toward strings)
5. Make 1/4-turn adjustments and re-measure after each
6. Repeat for the treble side — fret the high E string, target 5/64" (2.0mm)
7. Test through your amp at playing volume

Telecaster-specific tip: The bridge pickup sits inside the metal bridge plate, so the adjustment screws may be slightly harder to access. Use a screwdriver with a narrow shaft to avoid scratching the bridge plate.

Adjusting the Neck Pickup

The neck pickup provides the warm, round tone that makes Telecasters surprisingly versatile:

1. Follow the same process as the bridge pickup
2. Target: 6/64" (2.4mm) bass, 5/64" (2.0mm) treble
3. The chrome cover may make measurement slightly tricky — look through the cover slots to find the pole pieces
4. Check the balance between neck and bridge by switching between them
   • Output should be relatively even
   • The bridge will naturally sound brighter and more aggressive — that's by design
   • If the neck is noticeably quieter, raise it 1/64" at a time

Fine-Tuning and Testing

After setting both pickups to factory specs:

1. Play through all three switch positions — neck, bridge, and both together
2. Test clean and with overdrive — pickup height affects how your signal drives the amp
3. Play bends and vibrato — listen for any warbling or pitch instability (sign of pickups too close)
4. Check sustain — play a note and let it ring; if it dies quickly, pickups may be too close
5. Test with your typical playing dynamics — strum hard and play softly to check for consistent response

Telecaster Pickup Height for Different Playing Styles

Factory specs are a great starting point, but your ideal height depends on what you play. Here are style-specific recommendations:

Country and Twang

Target feel: Maximum brightness, snappy attack, clear note definition with that signature Tele "snap"

Recommended adjustments:

• Keep bridge pickup at factory specs or raise 1/64" closer (5/64" bass, 4/64" treble)
• Lower neck pickup 1/64" below specs (7/64" bass, 6/64" treble)
• The hotter bridge emphasizes the steel-baseplate twang
• The lower neck provides a clean, warm rhythm tone without competing

Best for:

• Traditional country (Brad Paisley, Brent Mason style)
• Chicken pickin' and hybrid picking
• Rockabilly and Western swing
• Bright, clean tones through a Fender amp

Blues and Classic Rock

Target feel: Warm overdrive with singing sustain, responsive dynamics, and smooth lead tones

Recommended adjustments:

• Lower bridge pickup 1/64" below specs (7/64" bass, 6/64" treble)
• Raise neck pickup 1/64" closer (5/64" bass, 4/64" treble)
• Tames the bridge pickup's ice-pick treble for smoother overdrive
• The hotter neck drives tube amps into natural breakup

Best for:

• Blues lead and rhythm (Keith Richards, Mike Bloomfield)
• Classic rock tones
• Slide guitar
• Expressive bending and vibrato

Jazz and Clean Playing

Target feel: Warm, articulate tone with excellent dynamic response and no harshness

Recommended adjustments:

• Lower both pickups 1/64" below factory specs (7/64" bass, 6/64" treble)
• Reduces output for more headroom and cleaner signal
• Increases sustain and harmonic complexity
• Better touch sensitivity for expressive playing

Best for:

• Jazz comping and soloing (Ted Greene, Julian Lage)
• Clean fingerstyle
• Studio recording where dynamics matter
• Ambient and textural playing

Modern Rock and High-Gain

Target feel: High output, aggressive attack, tight low end for distortion and overdrive

Recommended adjustments:

• Raise both pickups 1/64" closer than factory specs (5/64" bass, 4/64" treble)
• Higher output feeds more signal into gain stages
• The extra magnetic pull is less noticeable through heavy distortion
• Tight, focused tone that cuts through a loud band mix

Best for:

• Modern rock and alternative
• Punk and post-punk
• High-gain lead tones
• Aggressive rhythm playing

Common Telecaster Pickup Height Problems and Fixes

Problem: Bridge Pickup Has Ice-Pick Treble

Cause: Bridge pickup too close to strings. The steel baseplate amplifies treble frequencies, and when the pickup is too close, this becomes harsh and piercing.

Fix: Lower the bridge pickup 1/64" at a time until the harshness disappears. This is the most common Telecaster pickup complaint. Many experienced players keep their bridge pickup 1-2/64" lower than factory spec for this reason.

Problem: Neck Pickup Sounds Muddy

Cause: Neck pickup too close to strings, capturing too much bass-heavy string vibration.

Fix: Lower the neck pickup 1/64" at a time until clarity improves. The chrome cover already warms the tone, so the neck pickup doesn't need to be as close as you might think.

Problem: Volume Jump When Switching Pickups

Cause: Unbalanced pickup heights creating different output levels.

Fix: Lower the louder pickup rather than raising the quieter one. This preserves sustain while evening out volume. On most Telecasters, the bridge pickup is louder due to the baseplate, so lowering it slightly is the typical fix.

Problem: Strings Warble or Go Out of Tune When Bending

Cause: Pickups too close, magnetic pull interfering with string vibration.

Fix: Lower both pickups 1/64" and test bends again. This is especially common on the bass strings where the magnetic pull is strongest.

Problem: Loss of Sustain

Cause: Magnetic pull from pickups too close to strings dampening vibration.

Fix: Lower pickups 1/64" at a time until sustain improves. Test by playing a note and timing how long it rings clearly.

Problem: Weak Output from Both Pickups

Cause: Pickups too far from strings, not capturing enough signal.

Fix: Raise both pickups 1/64" at a time. Don't exceed 4/64" on the bass side, as magnetic pull becomes an issue. If output is still weak at factory specs, the issue may be with your wiring, pots, or the pickups themselves.

Telecaster vs Stratocaster Pickup Height: Key Differences

If you play both a Telecaster and a Stratocaster, here's how their pickup height specs compare:

The key difference is that the Telecaster's bridge pickup is inherently hotter than its neck pickup due to the steel baseplate. On a Stratocaster, all three pickups are similar in construction, so the graduated heights compensate for string vibration differences. On a Telecaster, the construction differences between the pickups do most of the compensating.

For detailed Stratocaster specs, see our Stratocaster Pickup Height Guide. For offset guitars, see our Jazzmaster Pickup Height Guide.

How Telecaster Pickup Height Interacts with Your Setup

Pickup height doesn't exist in isolation. Here's how it connects to the rest of your Telecaster setup:

Setup Order Matters

Always adjust in this sequence for best results:

1. Truss rod — set proper neck relief (Telecaster Truss Rod Guide)
2. Bridge saddle height — set string action
3. Pickup height — optimize pickup-to-string distance
4. Intonation — ensure accurate tuning across the neck

String Gauge Effects

String gauge affects the magnetic interaction between strings and pickups:

• Light gauge (.009-.042): Less mass means less magnetic signal. You may need pickups slightly closer for adequate output
• Standard (.010-.046): Factory specs work perfectly with this gauge
• Heavy gauge (.011-.049 or .012-.052): More mass produces stronger signal. Lower pickups 1/64" to avoid excessive magnetic pull

3-Saddle vs 6-Saddle Bridge Considerations

The bridge type doesn't directly affect pickup height, but it affects your overall setup workflow:

• 3-saddle vintage bridge: Intonation compromises mean some strings may sit slightly higher or lower than ideal. Set pickup height based on the average string position
• 6-saddle modern bridge: More precise string height control means more consistent pickup-to-string distance across all six strings

Pickup Magnet Strength Variations

Not all Telecaster pickups have the same magnet strength:

• Vintage-style pickups (Alnico III or V): Can sit closer to strings without excessive magnetic pull
• Hot-wound or overwound pickups: Should sit further from strings — start with factory specs and lower by 1/64" if needed
• Noiseless pickups (like Fender N3): Different magnetic structure may require slightly different heights — consult the pickup manufacturer's specs

Frequently Asked Questions (FAQ)

1. What is the correct Telecaster pickup height?

Answer: Fender's factory specification for Telecaster pickup height is 6/64" (2.4mm) on the bass side and 5/64" (2.0mm) on the treble side for both neck and bridge pickups. Measure from the top of the pickup pole piece to the bottom of the string with the string fretted at the last fret.

2. Should Telecaster neck and bridge pickups be the same height?

Answer: Fender sets both at the same height — 6/64" bass, 5/64" treble — but they sound very different due to their construction. The bridge pickup's steel baseplate makes it inherently louder and brighter. Many players lower the bridge 1/64" for better balance, especially for blues and rock.

3. Why does my Telecaster bridge pickup sound too bright?

Answer: The steel baseplate on the bridge pickup concentrates treble frequencies. If it sounds harsh or "ice-picky," lower the bridge pickup 1/64" at a time. This is the most common Telecaster pickup complaint and is easily fixed. Also consider your amp EQ and string choice — nickel strings are warmer than steel.

4. How do I measure Telecaster pickup height?

Answer: Fret the string at the last fret (or use a capo), then measure the gap between the top of the pickup pole piece and the bottom of the string using a ruler or string height gauge. Measure the low E string for the bass side and high E string for the treble side.

5. Can I use the same pickup height specs for a Squier Telecaster?

Answer: Yes. Squier Telecasters use the same pickup dimensions and mounting system as Fender models. The factory specs of 6/64" bass and 5/64" treble apply to all standard Telecaster-style guitars, including Squier Affinity, Classic Vibe, and Fender Player series models.

6. What pickup height is best for country tone on a Telecaster?

Answer: For maximum country twang, keep the bridge pickup at factory specs or raise it 1/64" closer (5/64" bass, 4/64" treble). Lower the neck pickup 1/64" below specs for a clean rhythm tone. The hotter bridge emphasizes the steel-baseplate snap that defines country Telecaster tone.

7. How does string gauge affect Telecaster pickup height?

Answer: Heavier strings produce a stronger magnetic signal and may need pickups lowered 1/64" to avoid magnetic pull issues. Lighter strings may need pickups raised slightly for adequate output. Always re-check pickup height after changing string gauge.

8. How often should I adjust Telecaster pickup height?

Answer: Adjust pickup height whenever you change string gauge, modify string action, adjust the truss rod, or notice changes in tone or sustain. Most players set it once during a full setup and only revisit if something changes. Seasonal humidity shifts can also affect neck relief, which indirectly changes the string-to-pickup distance.

9. Does the bridge plate affect Telecaster pickup height?

Answer: Yes. The steel bridge plate on a Telecaster concentrates the bridge pickup's magnetic field, making it more sensitive to height changes than a typical single coil. This is why the bridge pickup often benefits from being set slightly lower than factory spec — the baseplate effectively "boosts" the pickup's output and treble response.

10. How does Telecaster pickup height compare to Stratocaster?

Answer: Telecaster pickups sit at 6/64" bass and 5/64" treble for both positions. Stratocaster pickups use graduated heights: neck at 7/64"/6/64", middle at 6/64"/5/64", bridge at 5/64"/4/64". The Tele's bridge pickup is inherently hotter due to the steel baseplate, so it doesn't need to sit as close as a Strat bridge pickup. See our Stratocaster Pickup Height Guide for full Strat specs.

Want These Specs on Your Workbench?

Pickup height is just one part of a complete Telecaster setup. The Fender Setup Cheat Sheet includes:

• All Telecaster measurements in one printable reference
• Correct setup order (relief → action → pickups → intonation)
• Troubleshooting flowcharts for common Telecaster issues
• 3-saddle vs 6-saddle intonation tips

Get the Complete Setup Guide →

Quick Reference: Telecaster Pickup Height Specifications

Conclusion: Getting the Most from Your Telecaster Pickups

Telecaster pickup height adjustment is a simple, free modification that takes 10-15 minutes but can dramatically improve your tone. The Telecaster's asymmetric pickup design — a hot, baseplate-mounted bridge and a warm, chrome-covered neck — means that small height changes have a big impact on how the guitar sounds and how well the two pickups balance against each other.

Start with Fender's factory specs — 6/64" bass and 5/64" treble for both pickups — then fine-tune based on your playing style. Country players can raise the bridge for maximum twang, while blues and rock players often benefit from lowering it to tame the treble. Jazz players will find that lowering both pickups improves dynamics and sustain.

The key principles to remember:

• Both pickups start at the same height — but they sound different due to construction
• The bridge pickup is the one to watch — the steel baseplate makes it very sensitive to height changes
• Lower the louder pickup rather than raising the quieter one for better balance
• Adjust in 1/64" increments and test after each change
• Set action and relief before pickup height — always follow the correct setup order

For more comprehensive Telecaster setup guidance, explore these related articles:

Related Posts

Telecaster Setup and Maintenance

• Ultimate Telecaster Setup Guide — Complete step-by-step setup including action, relief, and intonation
• Telecaster Truss Rod Adjustment — Detailed neck relief adjustment techniques
• Best Strings for Telecaster — String recommendations for optimal tone
• Telecaster Wiring Diagram Guide — Electronics and pickup wiring

Guitar Setup Fundamentals

• Guitar Truss Rod Adjustment Guide — Set proper neck relief first
• Guitar Action Height Guide — String height adjustment basics
• Guitar String Gauges Guide — Understanding string tension and thickness

Pickup Height Guides for Other Models

• Stratocaster Pickup Height Guide — Compare with Strat specs
• Jazzmaster Pickup Height Guide — Offset pickup specs and adjustment

Other Fender Setup Guides

• Stratocaster Setup Guide — Complete Strat setup from start to finish
• Jazzmaster Setup Guide — Complete Jazzmaster setup guide
• Serial Number Lookup — Find your guitar's production year

Last updated: February 10, 2026

Tags

• Telecaster
• Guitar Setup
